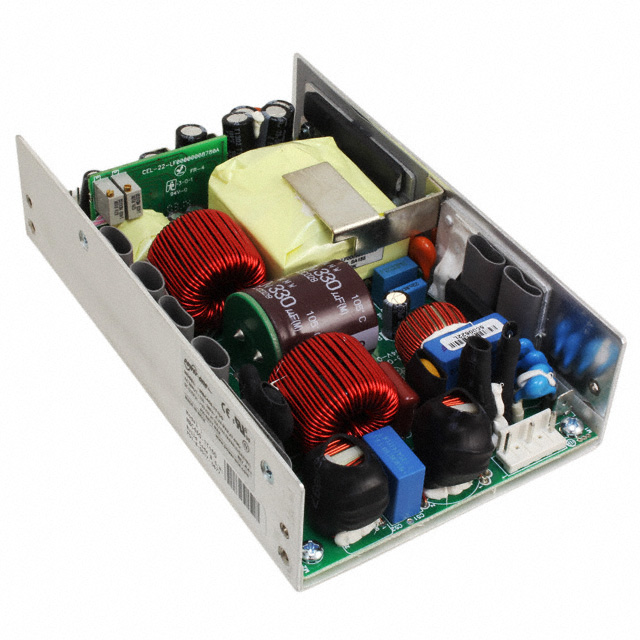

MBC450-1T15G

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250/450W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250/450W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBC450-1T15G	MBC450 Series

Applications	Medical	Medical
Approval Agency	CE	CE
Current - Output 1	30 A	15 - 55 A
Efficiency	83 %	83 %
Features	Universal Input, Adjustable Output, Remote Sense, Standby Output, DC Input Capable	Universal Input, Adjustable Output, Remote Sense, Standby Output, DC Input Capable
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	250 W, 450 W	155 - 450 W
Size / Dimension [x]	6.5 in	6.5 in
Size / Dimension [x]	165.1 mm	165.1 mm
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [y]	4 "	4 "
Size / Dimension [z]	1.61 "	1.61 "
Size / Dimension [z]	41 mm	41 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	15 V	5 - 48 V

AC/DC CONVERTER 15V 250/450W

Part	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Efficiency	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Approval Agency	Applications	Features	Type	Voltage - Isolation	Current - Output 1
Bel Power Solutions MBC450-1T15G	1	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Chassis Mount	83 %	250 W, 450 W	15 V	90 VAC	264 VAC	70 °C	CE	Medical	Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input	Open Frame	4.242 kV	30 A
Bel Power Solutions MBC450-1T30G	1	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Chassis Mount	83 %	300 W, 450 W	30 V	90 VAC	264 VAC	70 °C	CE	Medical	Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input	Open Frame	4.242 kV	15 A
Bel Power Solutions MBC450-1T48G	1	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Chassis Mount	83 %	300 W, 450 W	48 V	90 VAC	264 VAC	70 °C	CE	Medical	Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input	Open Frame	4.242 kV
Bel Power Solutions MBC450-1T05G	1	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	Chassis Mount	83 %	155 W, 275 W	5 V	90 VAC	264 VAC	70 °C	CE	Medical	Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input	Open Frame	4.242 kV	55 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
