QFR0812UHE-SP01

Obsolete

Delta Electronics

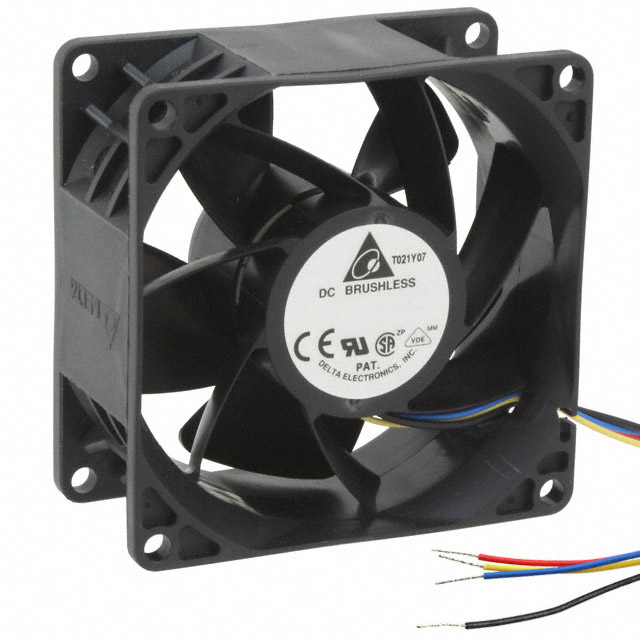

FAN AXIAL 80X38MM BALL 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

QFR0812UHE-SP01

Obsolete

Delta Electronics

FAN AXIAL 80X38MM BALL 12VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QFR0812UHE-SP01	QFR0812 Series

Air Flow	-	41.6 - 105.2 CFM
Air Flow	-	1.16 - 2.95 m³/min
Approval Agency	-	UL, CE, VDE, CSA, cURus
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.21 - 0.55 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection, PWM Control
Lifetime @ Temp.	-	50000 - 70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	36.4 - 60 dB(A)
Operating Temperature	-	60 - 70 °C
Operating Temperature	-	60 - 70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	-	1.92 - 13.8 W
RPM	-	3300 - 9000 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	-	47.1 - 332.5 Pa
Static Pressure	-	0.189 - 1.335 in H2O
Termination	-	3 Wire Leads, 4 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range	-	12.6 - 13.2 VDC
Voltage Range	-	5 - 10.8 V
Weight	-	86.64 - 160.12 g
Weight	-	0.191 - 0.353 lb
Width [y]	38 mm	25.4 - 38 mm

QFR0812 Series

FAN AXIAL 80X38MM 12VDC WIRE

Part	Size / Dimension [y]	Size / Dimension [x]	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Approval Agency	Power (Watts)	Bearing Type	Material - Blade	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	Fan Type	Weight	Weight	Features	Width [y]	Noise	Lifetime @ Temp.	Material - Frame	RPM	Current Rating (Amps)
Delta Electronics QFR0812UHE-F00	80 mm	80 mm	13.2 VDC	7 V	70 °C	70 °C	-10 °C	-10 °C	12 VDC	CE, CSA, UL, VDE	13.8 W	Ball	Plastic	3 Wire Leads	105.2 CFM	2.95 m³/min	332.5 Pa	1.335 in H2O	Tubeaxial	160.12 g	0.353 lb	Locked Rotor Protection, Speed Sensor (Tach)	38 mm	60 dB(A)	50000 Hrs	Plastic	9000 RPM
Delta Electronics QFR0812UHE-SP01	80 mm	80 mm							12 VDC			Ball	Plastic						Tubeaxial				38 mm			Plastic
Delta Electronics QFR0812DE-F00	80 mm	80 mm	13.2 VDC	10.8 VDC	60 °C	60 °C	-10 °C	-10 °C	12 VDC	CE, CSA, UL, VDE	13.8 W	Ball	Plastic	4 Wire Leads	105.2 CFM	2.95 m³/min	332.5 Pa	1.335 in H2O	Tubeaxial	160.12 g	0.353 lb	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	60 dB(A)	50000 Hrs	Plastic	9000 RPM
Delta Electronics QFR0812UH-CX14	80 mm	80 mm	12.6 VDC	10.8 VDC	60 °C	60 °C	-10 °C	-10 °C	12 VDC	CE, cURus, VDE	6.6 W	Ball	Plastic	4 Wire Leads	70.2 CFM	1.97 m³/min	137.2 Pa	0.551 in H2O	Tubeaxial	88.45 g	0.195 lb	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	25.4 mm	50.5 dB(A)	70000 Hrs	Plastic	5600 RPM	0.55 A
Delta Electronics QFR0812UHEYDW	80 mm	80 mm	13.2 VDC	10.8 VDC	70 °C	70 °C	-10 °C	-10 °C	12 VDC	CE, cURus, VDE	13.8 W	Ball	Plastic	4 Wire Leads	105.2 CFM	2.95 m³/min	332.5 Pa	1.335 in H2O	Tubeaxial	160.12 g	0.353 lb	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	60 dB(A)		Plastic	9000 RPM
Delta Electronics QFR0812HH-F00	80 mm	80 mm	13.2 VDC	5 VDC	70 °C	70 °C	-10 °C	-10 °C	12 VDC	CE, cURus, VDE	1.92 W	Ball	Plastic	3 Wire Leads	41.6 CFM	1.16 mł/min	47.1 Pa	0.189 in H2O	Tubeaxial	86.64 g	0.191 lb	Locked Rotor Protection, Speed Sensor (Tach)	25.4 mm	36.4 dB(A)	70000 Hrs	Plastic	3300 RPM
Delta Electronics QFR0812SH-F00	80 mm	80 mm	13.2 VDC	5 VDC	70 °C	70 °C	-10 °C	-10 °C	12 VDC	CE, CSA, UL, VDE	3.96 W	Ball	Plastic	3 Wire Leads	54.6 CFM	1.53 mł/min	82.4 Pa	0.331 in H2O	Tubeaxial	115.21 g	0.254 lb	Locked Rotor Protection, Speed Sensor (Tach)	25.4 mm	41.2 dB(A)	70000 Hrs	Plastic	4300 RPM	0.33 A
Delta Electronics QFR0812VH-F00	80 mm	80 mm	13.2 VDC	5 VDC					12 VDC	CE, CSA, UL, VDE	2.52 W	Ball	Plastic	3 Wire Leads	47.8 CFM	1.34 m³/min	62.5 Pa	0.251 in H2O	Tubeaxial	88.45 g	0.195 lb	Speed Sensor (Tach)	25.4 mm	38.3 dB(A)		Plastic	3800 RPM	0.21 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QFR0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball
