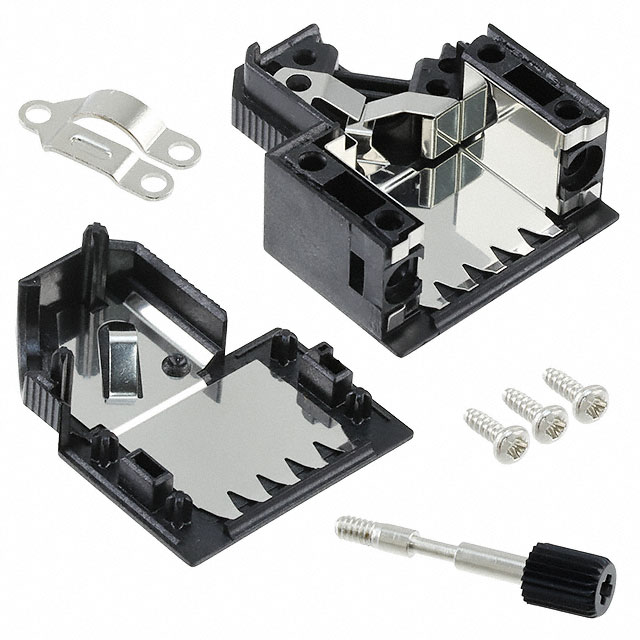

165X11759X

Active

Amphenol CONEC

CONN BACKSHELL 9POS 45DEG SHLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 9POS 45DEG SHLD

Technical Specifications

Parameters and characteristics for this part

Part	Cable Exit	Cable Type	Compatible D-Sub Size	Color	Accessory Type	Shielding	Primary Material	Features	Number of Positions	Compatible Shell Size	Material	Hardware
Amphenol CONEC 165X11719X	45 °	Round	15pos HD26pos	Black	Two Piece Backshell	Unshielded	Plastic	IP20 Mating Screws 4-40	15	A
Amphenol CONEC 165X11759X	45 °	Round	9pos HD15pos		Two Piece Backshell	Shielded	Plastic	Mating Screws 4-40	9	E	Plastic
Amphenol CONEC 165X11789X	45 °	Round	37pos HD62pos	Black	Two Piece Backshell	Shielded	Plastic	IP20 Mating Screws 4-40	37	C		Cable Clamp
Amphenol CONEC 165X11769X	45 °	Round	15pos HD26pos	Black	Two Piece Backshell	Shielded	Plastic	IP20 Mating Screws 4-40	15	A		Cable Clamp
Amphenol CONEC 165X11799X	180 °	Round	50pos HD78pos	Black	One Piece Backshell	Shielded	Plastic	Mating Screws 4-40	50	D
Amphenol CONEC 165X11779X	45 °	Round	25pos HD44pos	Black	One Piece Backshell	Shielded	Plastic	Mating Screws 4-40		B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 8.81

General part information

9 Position Two Piece Backshell Connector 45° Shielded
