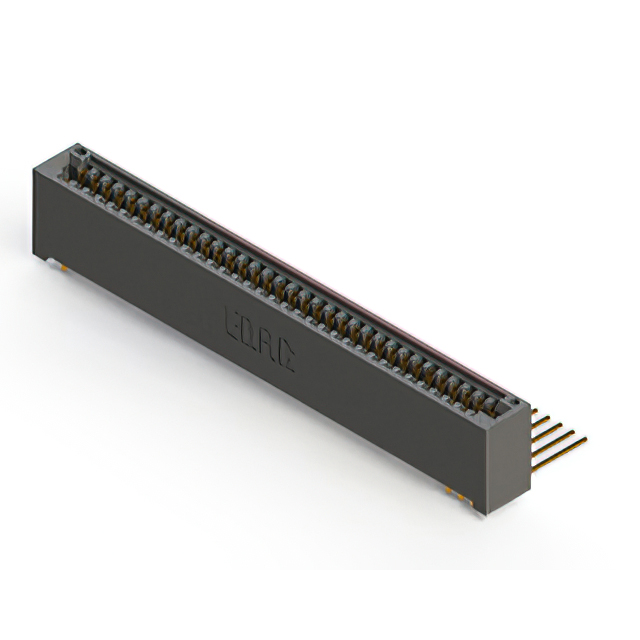

395-068-559-201
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-068-559-201
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-068-559-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-068 Series
...
| Part | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Features | Contact Material | Card Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Number of Positions/Bay/Row [custom] | Termination Rows | Gender | Number of Rows | Number of Positions | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Mounting Type | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Card Extender | Copper Alloy | Non Specified - Dual Edge | Dual | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 34 | 2 | Female | 2 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Board Edge Straddle Mount | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Dual Edge | Dual | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Polyester Thermoplastic | 34 | 2 | Female | 2 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole Right Angle | ||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Single Edge | Single | -40 °C | 105 ░C | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | Polyester Thermoplastic | 1 | Female | 1 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | 68 | ||||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Single Edge | Single | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Polyester Thermoplastic | 1 | Female | 1 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | 68 | ||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Single Edge | Single | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Polyester Thermoplastic | 1 | Female | 1 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Through Hole | 68 | ||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Dual Edge | Dual | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 34 | 2 | Female | 2 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | ||||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Card Extender | Copper Alloy | Non Specified - Dual Edge | Dual | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Polyester Thermoplastic | 34 | 2 | Female | 2 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Board Edge Straddle Mount | |||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Dual Edge | Dual | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Polyester Thermoplastic | 34 | 2 | Female | 2 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole Right Angle | |||||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Single Edge | Single | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 1 | Female | 1 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | 68 | ||||||
EDAC Inc. | Cantilever | 10 Áin | 0.25 Ám | Gold | Copper Alloy | Non Specified - Single Edge | Single | -40 °C | 105 ░C | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | Polyester Thermoplastic | 1 | Female | 1 | 68 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Through Hole | 68 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
