115-91-320-41-003000

Active

Mill-Max Manufacturing Corp.

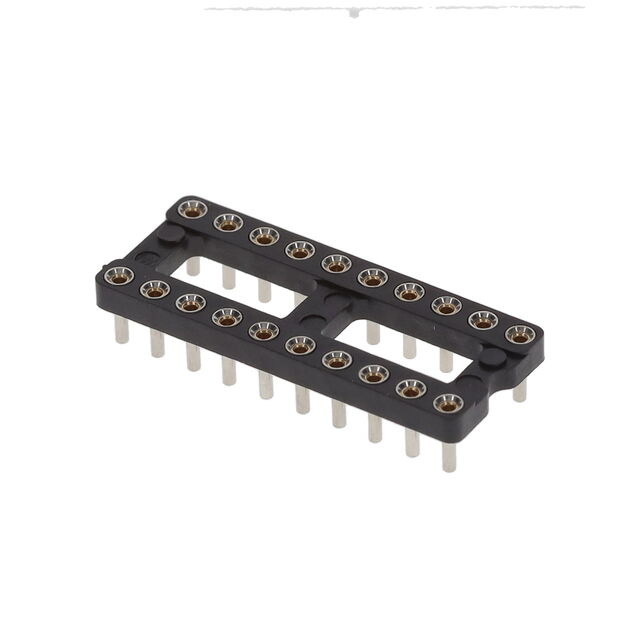

SOCKET IC OPEN LOWPRO .300 20POS

Deep-Dive with AI

Search across all available documentation for this part.

115-91-320-41-003000

Active

Mill-Max Manufacturing Corp.

SOCKET IC OPEN LOWPRO .300 20POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	115-91-320-41-003000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.108 in
Termination Post Length [x]	2.74 mm
Type	0.3 "
Type	7.62 mm
Type	DIP

115-91 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material - Post	Features	Contact Resistance	Contact Finish - Post	Pitch - Post	Pitch - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination Post Length [x]	Termination Post Length [x]	Type	Type	Type	Current Rating (Amps)	Termination	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 115-91-420-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	20
Mill-Max Manufacturing Corp. 115-91-324-41-001000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	24
Mill-Max Manufacturing Corp. 115-91-628-41-001000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	3 A	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	28
Mill-Max Manufacturing Corp. 115-91-652-41-001000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	3 A	Solder	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper
Mill-Max Manufacturing Corp. 115-91-306-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper		2	6	3
Mill-Max Manufacturing Corp. 115-91-422-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.4 in	10.16 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	22
Mill-Max Manufacturing Corp. 115-91-650-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.6 in	15.24 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper
Mill-Max Manufacturing Corp. 115-91-318-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	18
Mill-Max Manufacturing Corp. 115-91-320-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	20
Mill-Max Manufacturing Corp. 115-91-316-41-003000	200 µin	5.08 µm	Gold	Brass Alloy	Open Frame	10 mOhm	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	0.1 in	2.54 mm	0.108 in	2.74 mm	0.3 "	7.62 mm	DIP	3 A	Solder	Thermoplastic	10 çin	0.25 çm	Through Hole	-55 °C	125 °C	Beryllium Copper	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.35
		20	$ 14.49
		40	$ 13.38
		100	$ 12.63
		260	$ 11.52
		500	$ 10.78
		1000	$ 9.88

Description

General part information

115-91 Series

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
