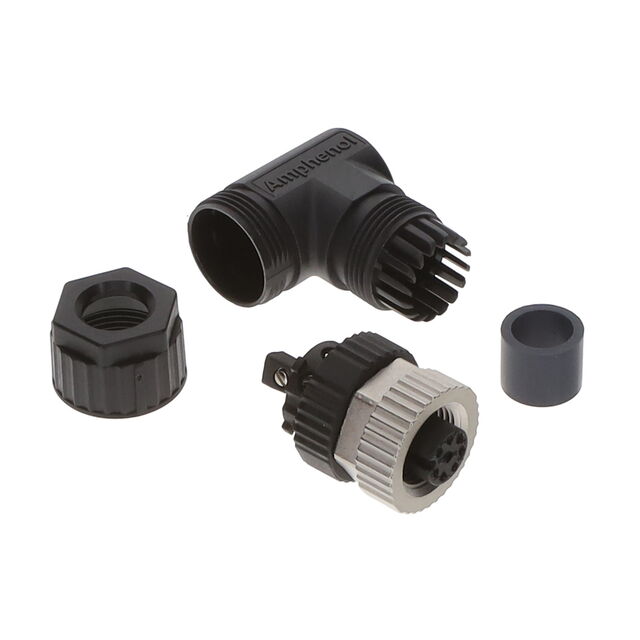

M12A-08BFFB-SR7001
ActiveAmphenol LTW
M12 CONN SCREW IN 90
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-08BFFB-SR7001
ActiveAmphenol LTW
M12 CONN SCREW IN 90
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-08BFFB-SR7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 0.276 in |
| Cable Opening [Max] [diameter] | 7 mm |
| Cable Opening [Min] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.157 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-8 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.24 | |
| 10 | $ 12.63 | |||
| 30 | $ 12.14 | |||
| 50 | $ 11.65 | |||
| 100 | $ 11.01 | |||
| 250 | $ 10.04 | |||
| 500 | $ 9.39 | |||
| 1000 | $ 8.61 | |||
Description
General part information
M12A-08BFFB Series
8 Position Circular Connector Plug, Female Sockets Screw
