ActiveAmphenol ICC (Commercial Products)

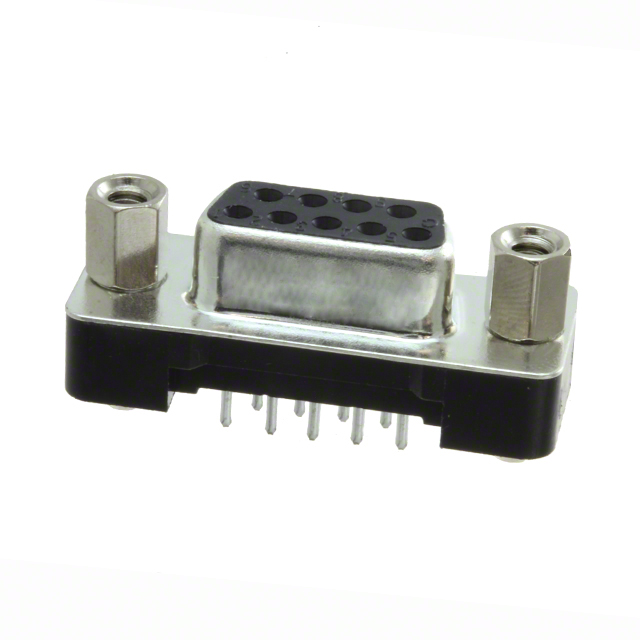

CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L77TSEH09SOL2RM8
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77TSEH09SOL2RM8 |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.70 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.42 | |||
| 40 | $ 1.38 | |||
| 81 | $ 1.32 | |||
| 243 | $ 1.19 | |||
| 486 | $ 1.10 | |||
| 972 | $ 0.94 | |||
| 2430 | $ 0.88 | |||
Description
General part information
L77TSEH09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
