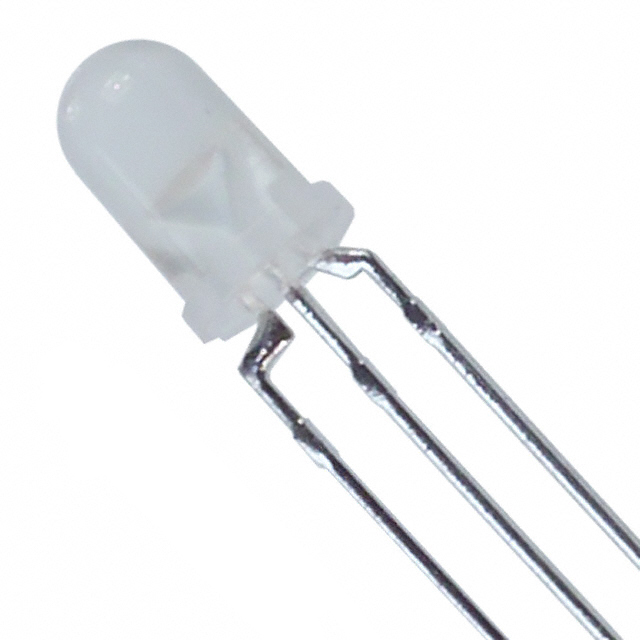

LTL1BEKVJNN

Active

Diodes Inc

20MA 110MCD WHITE LENS COMMON CATHODE RED,EMERALD 45° SIP-3-2.54MM LED INDICATION - DISCRETE ROHS

Search across all available documentation for this part.

Active

Diodes Inc

20MA 110MCD WHITE LENS COMMON CATHODE RED,EMERALD 45° SIP-3-2.54MM LED INDICATION - DISCRETE ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Color	Size / Dimension [diameter]	Wavelength - Dominant	Current - Test	Color	Lens Transparency	Lens Size [diameter]	Wavelength - Peak	Viewing Angle	Height (Max) [Max] [z]	Configuration	Millicandela Rating	Height (Max) [Max]	Wavelength - Dominant [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating
Diodes Inc LTL1CHJSDNN	Through Hole	Radial	Radial	1.8 V	Round with Domed Top	Yellow	3.1 mm	587 nm	2 mA	Yellow	Diffused	3.1 mm	588 nm	60 °
Diodes Inc LTL1CHUBK	Through Hole	T-1	Radial	3.8 V	Round with Domed Top	Colorless		466 nm	20 mA	Blue	Clear	3.1 mm	428 nm	30 °	5.2 mm	Standard	106 mcd
Diodes Inc LTL1CHKRK	Through Hole		Radial	2 V	Round with Domed Top	Colorless		631 nm	20 mA	Red	Clear	3.1 mm	639 nm	45 °		Standard	340 mcd	5.5 mm
Diodes Inc LTL-1CHPE	Through Hole		Radial	2.1 V	Round with Domed Top	Red			20 mA	Red	Clear	3.1 mm	697 nm	45 °	5.2 mm	Standard	8.7 mcd		657 nm
Diodes Inc LTL1CHFL4D	Through Hole	Radial	Radial	2.05 V	Round with Domed Top		3.1 mm	605 nm	20 mA			3.1 mm	611 nm	45 °			680 mcd
Diodes Inc LTL1CHJDE	Through Hole	Radial	Radial	2 V	Round with Domed Top	Red	3.1 mm	621 nm	20 mA	Red	Diffused	3.1 mm	632 nm	60 °			240 mcd
Diodes Inc LTL1CHKRKNN	Through Hole	T-1	Radial	2 V	Round with Domed Top	Colorless		631 nm	20 mA	Red	Clear	3.1 mm	639 nm	45 °	5.2 mm	Standard	400 mcd
Diodes Inc LTL1BEKVJNN	Through Hole		Radial - 3 Leads	2 V 2.1 V	Round with Domed Top	White		572 nm 631 nm	20 mA 20 mA	Green Red	Diffused	3 mm		45 °	5.15 mm	Common Cathode				639 nm	575 nm	110mcd Green 110mcd Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red 572nm Green, 631nm Red LED Indication - Discrete 2.1V Green, 2V Red Radial - 3 Leads
