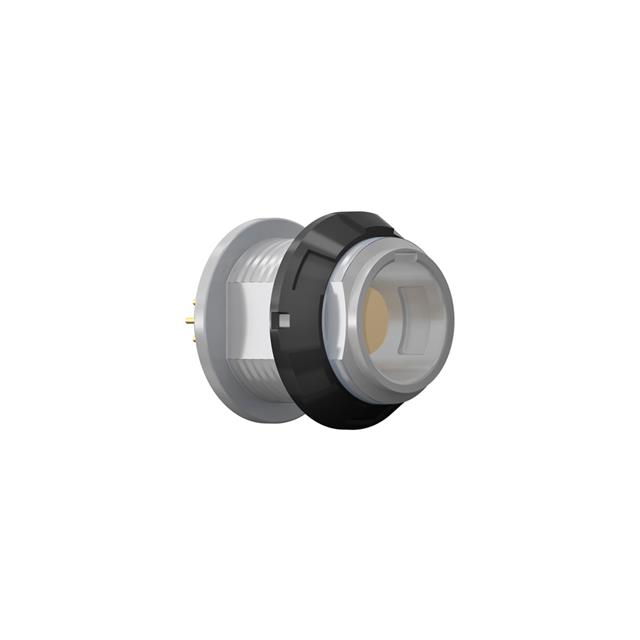

G81M07-P10LCC0-0080

Active

ODU

ODU MEDI-SNAP RECEPT, STY 8, SZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G81M07-P10LCC0-0080

Active

ODU

ODU MEDI-SNAP RECEPT, STY 8, SZ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G81M07-P10LCC0-0080

Applications	Testing Equipment, Medical, Industrial, Measurement
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	10
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	25 V

G81M07-P Series

Part	Connector Type	Color	Contact Material	Primary Material	Number of Positions	Mounting Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Shell Size - Insert	Fastening Type	Termination	Mounting Feature	Contact Finish - Mating	Applications	Insert Material	Voltage Rating	Ingress Protection	Material Flammability Rating	Current Rating (Amps)
ODU G81M07-P04QJ00-0070	Receptacle Female Sockets	Gray	Brass	Plastic	4	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	48 VDC	IP50	UL94 V-0	7.5 A
ODU G81M07-P07QF00-A020	Receptacle Female Sockets	Gray Red	Brass	Plastic	7	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	36 VDC	IP50	UL94 V-0	6 A
ODU G81M07-P04QJ00-A060	Receptacle Female Sockets	Blue Gray	Brass	Plastic	4	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	48 VDC	IP50	UL94 V-0	7.5 A
ODU G81M07-P10LCC0-0080	Receptacle Female Sockets		Brass	Plastic	10		Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull		Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	25 V	IP50	UL94 V-0	4 A
ODU G81M07-P10QC00-A070	Receptacle Female Sockets	Gray	Brass	Plastic	10	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	25 V	IP50	UL94 V-0	4 A
ODU G81M07-P07QF00-0060	Receptacle Female Sockets	Blue Gray	Brass	Plastic	7	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	36 VDC	IP50	UL94 V-0	6 A
ODU G81M07-P05QJ00-A060	Receptacle Female Sockets	Blue Gray	Brass	Plastic		Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	35 V	IP50	UL94 V-0	7.5 A
ODU G81M07-P10QC00-0070	Receptacle Female Sockets	Gray	Brass	Plastic	10	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	25 V	IP50	UL94 V-0	4 A
ODU G81M07-P04QJ00-0080	Receptacle Female Sockets		Brass	Plastic	4	Panel Mount Through Hole	Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull	Solder	Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	48 VDC	IP50	UL94 V-0	7.5 A
ODU G81M07-P05LJG0-0050	Receptacle Female Sockets	Gray Green	Brass	Plastic			Unshielded	-50 °C	120 °C	Polysulfone (PSU)	1	Detent Lock Push-Pull		Bulkhead - Front Side Nut	Gold	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	35 V	IP50	UL94 V-0	7.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.15

Description

General part information

G81M07-P Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
