901-166

Active

Amphenol RF

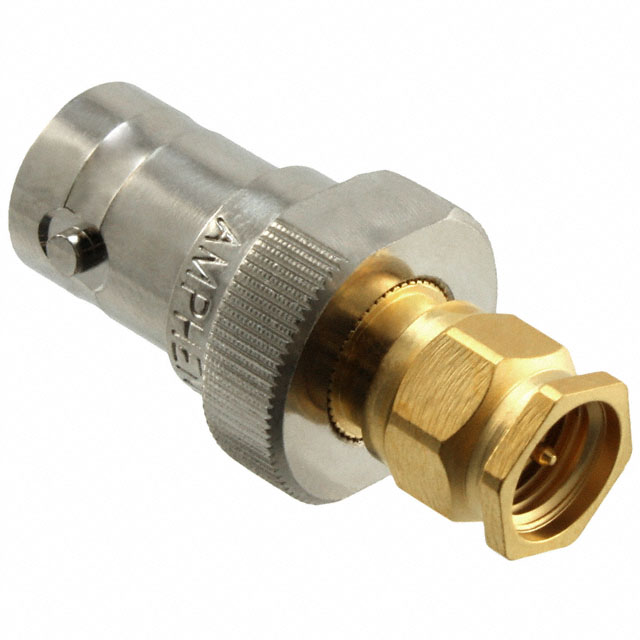

CONN ADAPT BNC JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT BNC JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	901-166

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mating Cycles	Mounting Type	Convert To (Adapter End)	Center Contact Material	Adapter Type	Frequency - Max [Max]	Conversion Type	Adapter Series	Convert From (Adapter End)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Body Finish	Body Material	Center Contact Plating	Dielectric Material	Impedance	Center Gender
Amphenol RF 901-166	500	Free Hanging (In-Line)	Male Pin SMA Plug	Beryllium Copper	Plug to Jack	4 GHz	Between Series	BNC to SMA	BNC Jack Female Socket	Straight	-65 ░C	165 °C	Bayonet Lock Threaded	Gold Nickel	Beryllium Copper Brass	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms
Amphenol RF 901-164	500	Free Hanging (In-Line)	Male Pin SMA Plug	Beryllium Copper Brass	Plug to Plug	4 GHz	Between Series	BNC to SMA	BNC Plug Male Pin	Straight	-65 ░C	165 °C	Bayonet Lock Threaded	Gold Nickel	Brass	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
