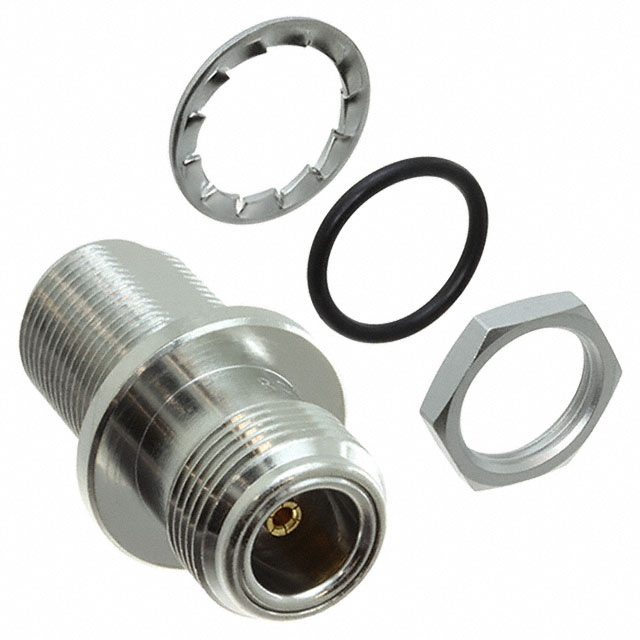

53K502-K00N5

Active

Rosenberger

COAX ADAPT N TO N

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT N TO N

Technical Specifications

Parameters and characteristics for this part

Specification	53K502-K00N5

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Style	Straight

Part	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Center Gender	Impedance	Dielectric Material	Convert To (Adapter End)	Center Contact Material	Center Contact Plating	Body Material	Adapter Series	Mounting Feature	Convert From (Adapter End)	Frequency - Max [Max]	Mating Cycles	Adapter Type	Conversion Type	Body Finish	Style
Rosenberger 53K502-K00N5	-25 °C	85 °C	1 Connector 1 Lockwasher 1 Nut	Female to Female	50 Ohms	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	Bronze	Gold	Brass	N to N	Bulkhead	Female Socket N Jack	11 GHz	500	Jack to Jack	Same Series	White Bronze	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
