2-1102270-6
ActiveTE Connectivity AMP Connectors

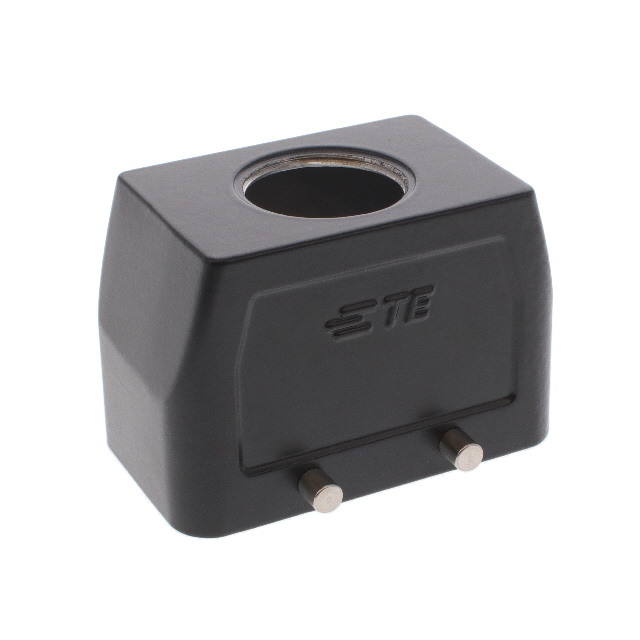

CONN HOOD TOP ENTRY SZ4 PG21
Deep-Dive with AI
Search across all available documentation for this part.
2-1102270-6
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ4 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1102270-6 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Size | 4 |
| Size / Dimension [x] | 2.874 in |
| Size / Dimension [x] | 73 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 1.969 in |
| Size / Dimension [z] | 50 mm |
| Style | Top Entry |
| Thread Size | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.34 | |
1102270 Series
CONN HOOD TOP ENTRY SZ4 PG21
| Part | Thread Size | Ingress Protection | Size | Style | Lock Location | Housing Finish | Housing Color | Housing Material | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1102270-6 | PG21 | IP65 - Dust Tight, Water Resistant | 4 | Top Entry | Locking Clip (2) on Base Bottom | Aluminum Oxide | Black | Aluminum Alloy, Die Cast | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm | Hood |
Description
General part information
1102270 Series
Hood Connector Top Entry PG21 4 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
