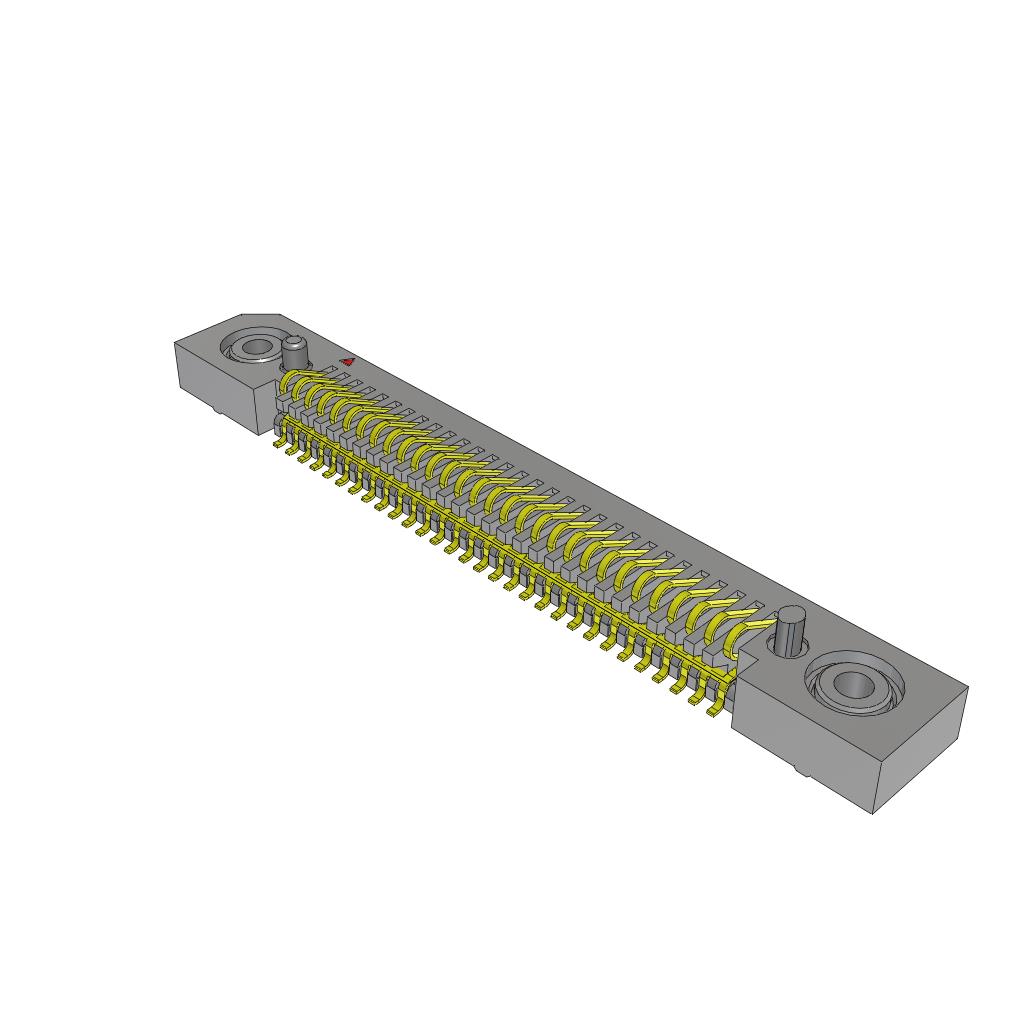

FSI-130-03-G-S-M-AD

Active

CONN STACKING 30POS SMD GOLD

Active

CONN STACKING 30POS SMD GOLD

Description

General part information

Board to Board & Mezzanine Connectors 1.00 mm One-Piece Interface

Parameters and characteristics for this part

Specification	FSI-130-03-G-S-M-AD

Connector Type	Stacking Compression
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Mounting Flange, Board Guide, Mating Guide
Height Above Board	0.118 in
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	1
Pitch	0.039 in

Board to Board & Mezzanine Connectors 1.00 mm One-Piece Interface

...

Part	Number of Rows	Pitch	Contact Finish Thickness	Connector Type	Features	Mounting Type	Height Above Board	Contact Finish	Number of Positions
Samtec Inc. FSI-130-03-G-S-M-AD	1	0.039 in	10 Ąin	Stacking Compression	Board Guide Mating Guide Mounting Flange	Surface Mount	0.118 in	Gold	30
Samtec Inc. FSI-130-03-G-D-AB-K-TR	2	0.039 in	10 Ąin	Stacking Compression	Board Guide Pick and Place	Surface Mount	0.118 in	Gold	60
Samtec Inc. FSI-130-10-L-D-E-AB-P-TR	2	0.039 in	10 Ąin	Stacking Compression	Board Guide Mounting Flange Pick and Place	Surface Mount	0.394 in	Gold	60
Samtec Inc. FSI-130-10-L-D-E-AB	2	0.039 in	10 Ąin	Stacking Compression	Board Guide Mounting Flange	Surface Mount	0.394 in	Gold	60
Samtec Inc. FSI-130-03-H-D-M-AD-K-TR	2	0.039 in	30 µin	Stacking Compression	Board Guide Mating Guide Mounting Flange Pick and Place	Surface Mount	0.118 in	Gold	60
Samtec Inc. FSI-130-03-G-D-E-AB-K-TR	2	0.039 in	10 Ąin	Stacking Compression	Board Guide Mounting Flange Pick and Place	Surface Mount	0.118 in	Gold	60
Samtec Inc. FSI-130-10-L-D-AB	2	0.039 in	10 Ąin	Stacking Compression	Board Guide	Surface Mount	0.394 in	Gold	60
Samtec Inc. FSI-130-10-L-D-M	2	0.039 in	10 Ąin	Stacking Compression	Mounting Flange	Surface Mount	0.394 in	Gold	60
Samtec Inc. FSI-130-06-L-S-K	1	0.039 in	10 Ąin	Stacking Compression	Pick and Place	Surface Mount	0.236 in	Gold	30
Samtec Inc. FSI-130-10-L-D-M-AB	2	0.039 in	10 Ąin	Stacking Compression	Board Guide Mounting Flange	Surface Mount	0.394 in	Gold	60
