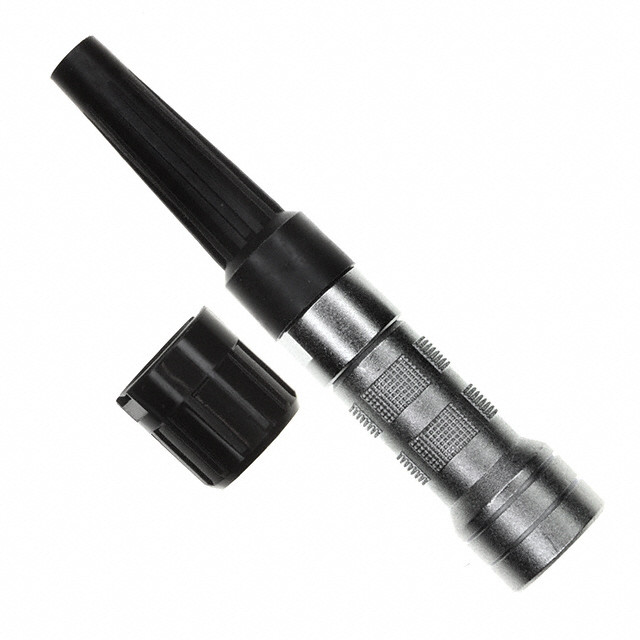

JB5HS04FM11N

Obsolete

JAE Electronics

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5HS04FM11N

Applications	Telecommunications, Medical, Test & Measurement
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Chromium
Shell Material	Copper Alloy
Shell Size - Insert	S
Shielding	Shielded
Voltage Rating	320 VAC

Part	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shell Material	Voltage Rating	Mounting Type	Shell Finish	Contact Finish - Mating	Primary Material	Shielding	Applications	Shell Size - Insert	Orientation	Fastening Type	Connector Type
JAE Electronics JB5HS04FM11N	3 A	4	85 °C	-55 °C	IP68 - Dust Tight Waterproof	Copper Alloy	320 VAC	Free Hanging (In-Line)	Chromium	Gold	Metal	Shielded	Medical Telecommunications Test & Measurement	S	N	Push-Pull	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
