890-1684

Active

WAGO Corporation

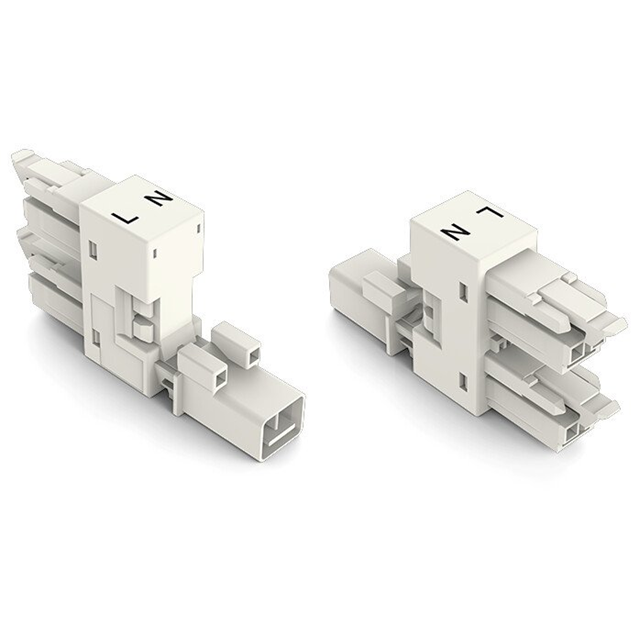

H-DISTRIBUTION CONNECTOR 2-POLE COD. A, WHITE

Search across all available documentation for this part.

Active

WAGO Corporation

H-DISTRIBUTION CONNECTOR 2-POLE COD. A, WHITE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	890-1684	890-16 Series

Convert From (Adapter End)	1, 2 Rows	1 - 3
Convert From (Adapter End)	Terminal Block, Plug Connection	Terminal Block, Plug Connection
Convert To (Adapter End)	4 Pos, Plug Connection, Terminal Block, 2 Row	4 Pos, Plug Connection, Terminal Block, 2 Row
Convert To (Adapter End)	-	1 - 6 Row
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)

H-DISTRIBUTION CONNECTOR 2-POLE COD. A, WHITE

Part	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)
WAGO Corporation 890-1684	2 Row, 4 Pos, Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)
WAGO Corporation 890-1634	2 Row, 4 Pos, Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)
WAGO Corporation 890-1656	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1636	2 Row, 4 Pos, Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)
WAGO Corporation 890-1617	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1602	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1665	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1601	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1615	Plug Connection, Terminal Block	1, 2 Rows	Plug Connection, Terminal Block	Free Hanging (In-Line)	1 Row, 2 Rows
WAGO Corporation 890-1661	Plug Connection, Terminal Block	1, 3 pos	Plug Connection, Terminal Block	Free Hanging (In-Line)	2 Rows, 6 pos

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Block, Plug Connection, 2 Pos, 1 Row To Terminal Block, Plug Connection, 4 Pos, 2 Row
