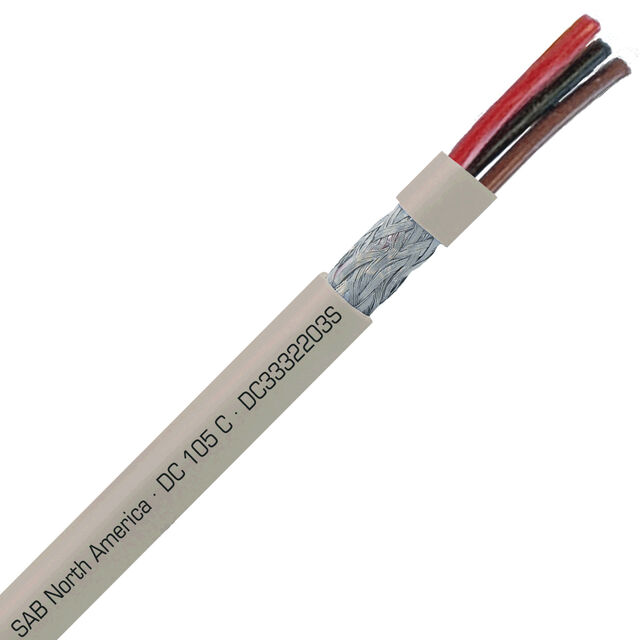

DC3332203S

Active

SAB North America

CABLE 3COND 22AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 3COND 22AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332203S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

CABLE 3COND 22AWG GRY SHLD 1=1FT

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Shield Material	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Features
SAB North America DC3332203S	300 V	7	30 AWG	Enter Number of Feet in Order Quantity	Braid, Foil	Gray	5.33 mm	0.21 in	Multi-Conductor	-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)	Copper, Tinned	22 AWG	Poly-Vinyl Chloride (PVC)	Copper, Tinned	3	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
