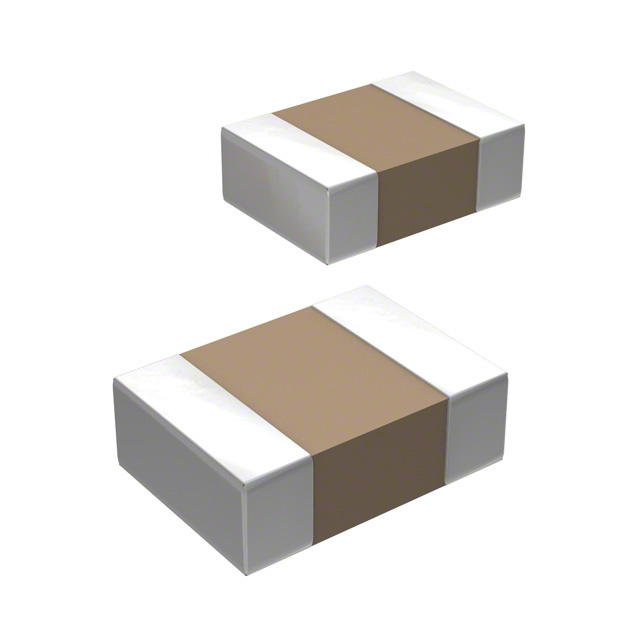

CF453215-5R6K

Obsolete

Bourns Inc.

FIXED IND 5.6UH 300MA 1.1OHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 5.6UH 300MA 1.1OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Type	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Inductance Frequency - Test	Q @ Freq	Current Rating (Amps)	Mounting Type	Inductance	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core
Bourns Inc. CF453215-6R8K	10 %	-55 °C	125 °C	1812 (4532 Metric)	Multilayer	1.2 Ohm	27 MHz	7.96 MHz	7.96 MHz 50	285 mA	Surface Mount	6.8 µH	Shielded	0.067 in	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	Ferrite
Bourns Inc. CF453215-5R6K	10 %	-55 °C	125 °C	1812 (4532 Metric)	Multilayer	1.1 Ohm	33 MHz	7.96 MHz	7.96 MHz 50	300 mA	Surface Mount	5.6 µH	Shielded	0.067 in	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	Ferrite
Bourns Inc. CF453215-2R7K	10 %	-55 °C	125 °C	1812 (4532 Metric)	Multilayer	750 mOhm	50 MHz	7.96 MHz	7.96 MHz 50	370 mA	Surface Mount	2.7 µH	Shielded	0.067 in	1.7 mm	3.2 mm	0.177 in	4.5 mm	0.126 "	Ferrite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5.6 µH Shielded Multilayer Inductor 300 mA 1.1Ohm Max 1812 (4532 Metric)
