A9BAA-1302F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF13A/AF13/AFE13T
Deep-Dive with AI
Search across all available documentation for this part.
A9BAA-1302F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF13A/AF13/AFE13T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9BAA-1302F | A9BAA Series |
|---|---|---|
| Contact Termination | Receptacle to Solder Tab | Receptacle to Solder Tab |
| Length | - | 101.6 - 127 mm |
| Length | - | 3 - 5 " |
| Length | - | 76.2 - 203.2 mm |
| Length | - | 6 - 8 in |
| Number of Positions | 13 | 2 - 20 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 1.27 - 2.54 mm |
| Pitch [x] | 0.1 in | 0.05 - 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.07 | |
| 10 | $ 8.34 | |||
| 25 | $ 7.74 | |||
| 50 | $ 7.32 | |||
| 100 | $ 6.92 | |||
| 250 | $ 6.42 | |||
| 500 | $ 6.07 | |||
| 1000 | $ 5.74 | |||
A9BAA Series
FLEX CABLE - AFJ06A/AE06/AFH06T
...
| Part | Contact Termination | Number of Positions | Pitch [x] | Pitch [x] | Length [x] | Length [x] | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9BAA-0602E | Receptacle to Solder Tab | 6 | 0.05 in | 1.27 mm | |||||
TE Connectivity AMP Connectors A9BAA-0204F | Receptacle to Solder Tab | 2 | 0.1 in | 2.54 mm | 101.6 mm | 4 " | |||
TE Connectivity AMP Connectors A9BAA-1302F | Receptacle to Solder Tab | 13 | 0.1 in | 2.54 mm | |||||
TE Connectivity AMP Connectors A9BAA-1208F | Receptacle to Solder Tab | 12 | 0.1 in | 2.54 mm | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9BAA-2004F | Receptacle to Solder Tab | 20 | 0.1 in | 2.54 mm | 101.6 mm | 4 " | |||
TE Connectivity AMP Connectors A9BAA-2505E | Receptacle to Solder Tab | 0.05 in | 1.27 mm | 127 mm | 5 in | ||||
TE Connectivity AMP Connectors A9BAA-0802E | Receptacle to Solder Tab | 8 | 0.05 in | 1.27 mm | |||||
TE Connectivity AMP Connectors A9BAA-0506F | Receptacle to Solder Tab | 0.1 in | 2.54 mm | 152.4 mm | 6 in | ||||
TE Connectivity AMP Connectors A9BAA-1404F | Receptacle to Solder Tab | 14 | 0.1 in | 2.54 mm | 101.6 mm | 4 " | |||
TE Connectivity AMP Connectors A9BAA-1703E | Receptacle to Solder Tab | 0.05 in | 1.27 mm | 3 in | 76.2 mm |
Description
General part information
A9BAA Series

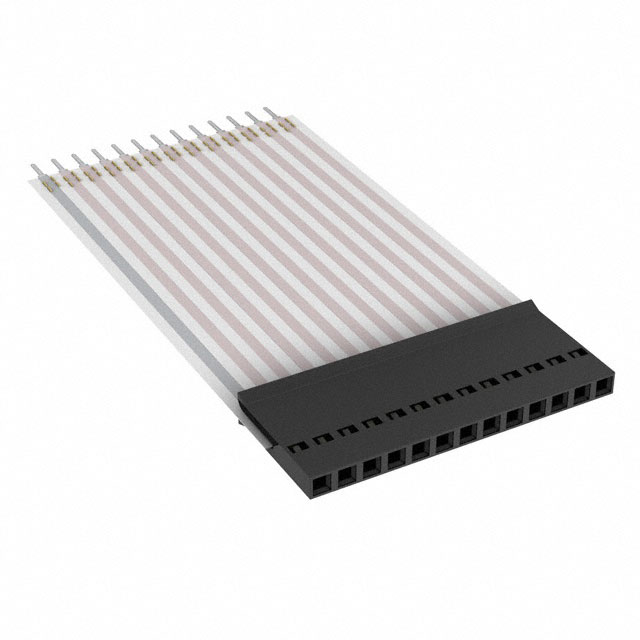

13 Position Flat Flex Cable Assembly Receptacle to Solder Tab 2.00" (50.80mm)
