PWH-05BMFC-LL8001

Active

Amphenol LTW

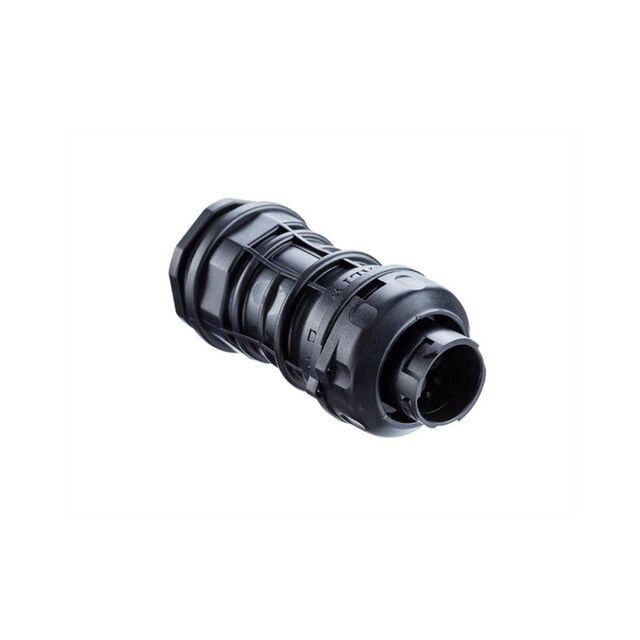

POWER, PWH, 25A, 05 PINS, FIELD

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWH, 25A, 05 PINS, FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	PWH-05BMFC-LL8001

Backshell Material, Plating	Polyphenylene Ether (PPE)
Cable Opening [custom]	16 mm, 13 mm
Cable Opening [custom]	0.63 in, 0.512 in
Color	Black
Connector Type	Plug, Male Pins
Contact Material	Copper
Current Rating (Amps)	25 A
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Modified Polyphenylene Ether (mPPE)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyphenylene Ether (PPE)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	1000 VDC, 660 VAC

Part	Color	Current Rating (Amps)	Connector Type	Ingress Protection	Termination	Contact Material	Shell Material	Shielding	Cable Opening [custom]	Cable Opening [custom]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Backshell Material, Plating	Orientation	Features	Mounting Type	Insert Material	Material Flammability Rating	Fastening Type
Amphenol LTW PWH-05BMFC-LL8001	Black	25 A	Male Pins Plug	IP68 - Dust Tight Waterproof	Crimp	Copper	Polyphenylene Ether (PPE)	Unshielded	13 mm 16 mm	0.512 in 0.63 in	660 VAC 1000 VDC	-40 °C	105 ░C	Plastic	Polyphenylene Ether (PPE)	Keyed	Backshell	Free Hanging (In-Line)	Modified Polyphenylene Ether (mPPE)	UL94 V-0
Amphenol LTW PWH-05BMFC-LL8002	Black	25 A	Female Sockets Plug	IP68 - Dust Tight Waterproof	Crimp	Copper	Polyphenylene Ether (PPE)	Unshielded	13 mm 16 mm	0.512 in 0.63 in	660 VAC 1000 VDC	-40 °C	105 ░C	Plastic		Keyed		Free Hanging (In-Line)	Polyphenylene Ether (PPE)	UL94 V-0	Bayonet Lock
