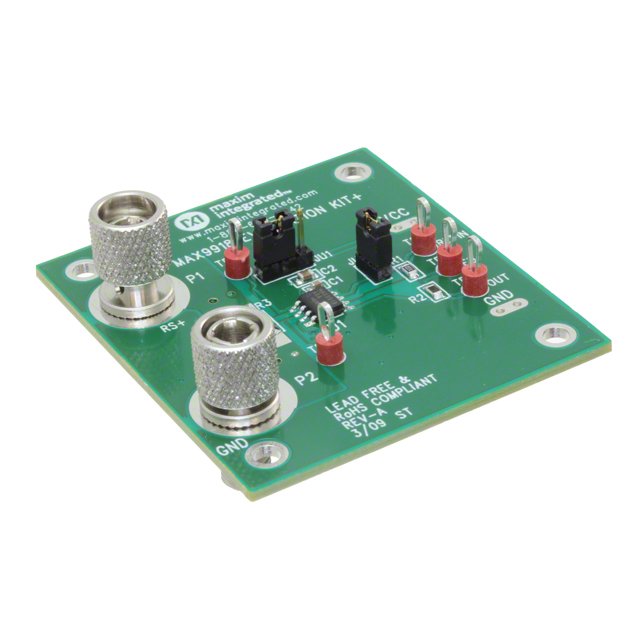

MAX9918EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX9918
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9918EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX9918
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9918EVKIT+ | MAX9918 Series |
|---|---|---|
| -3db Bandwidth | 75 kHz | 75 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 - Single | 1 - Single |
| Current - Output / Channel | - | 44 mA |
| Current - Supply | - | 1 mA |
| Current - Supply (Main IC) | 1 mA | 1 mA |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | Single-Ended, Rail-to-Rail | Rail-to-Rail, Single-Ended |
| Package / Case | - | 0.154 in |
| Package / Case | - | 8-SOIC |
| Package / Case | - | 3.9 mm |
| Qualification | - | AEC-Q100 |
| Slew Rate | 0.6 V/µs | 0.6 V/µs |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-SOIC-EP |
| Utilized IC / Part | MAX9918 | MAX9918 |
| Voltage - Input Offset | - | 400 µV |
| Voltage - Supply Span (Max) | - | 5.5 V |
| Voltage - Supply Span (Min) | - | 4.5 V |
| Voltage - Supply, Single/Dual (±) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Single/Dual (±) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.98 | |
MAX9918 Series
IC CURRENT SENSE 1 CIRCUIT 8SOIC
| Part | -3db Bandwidth | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Amplifier Type | Package / Case | Package / Case | Package / Case | Voltage - Supply Span (Min) [Min] | Supplier Device Package | Slew Rate | Output Type | Grade | Voltage - Supply Span (Max) [Max] | Current - Output / Channel | Voltage - Input Offset | Qualification | Number of Circuits | Supplied Contents | Current - Supply (Main IC) | Board Type | Utilized IC / Part | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) [Max] | Channels per IC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9918ASA/V+T | 75 kHz | Surface Mount | 125 °C | -40 °C | 1 mA | Current Sense | 0.154 in | 8-SOIC | 3.9 mm | 4.5 V | 8-SOIC-EP | 0.6 V/µs | Rail-to-Rail | Automotive | 5.5 V | 44 mA | 400 µV | AEC-Q100 | 1 | |||||||
Analog Devices Inc./Maxim Integrated MAX9918ASA+ | 75 kHz | Surface Mount | 125 °C | -40 °C | 1 mA | Current Sense | 0.154 in | 8-SOIC | 3.9 mm | 4.5 V | 8-SOIC-EP | 0.6 V/µs | Rail-to-Rail | 5.5 V | 400 µV | 1 | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9918ASA+T | 75 kHz | Surface Mount | 125 °C | -40 °C | 1 mA | Current Sense | 0.154 in | 8-SOIC | 3.9 mm | 4.5 V | 8-SOIC-EP | 0.6 V/µs | Rail-to-Rail | 5.5 V | 400 µV | 1 | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9918EVKIT+ | 75 kHz | Current Sense | 0.6 V/µs | Rail-to-Rail, Single-Ended | Board(s) | 1 mA | Fully Populated | MAX9918 | 4.5 V | 5.5 V | 1 - Single |
Description
General part information
MAX9918 Series
MAX9918 1 - Single Channels per IC Current Sense Amplifier Evaluation Board
Documents
Technical documentation and resources
