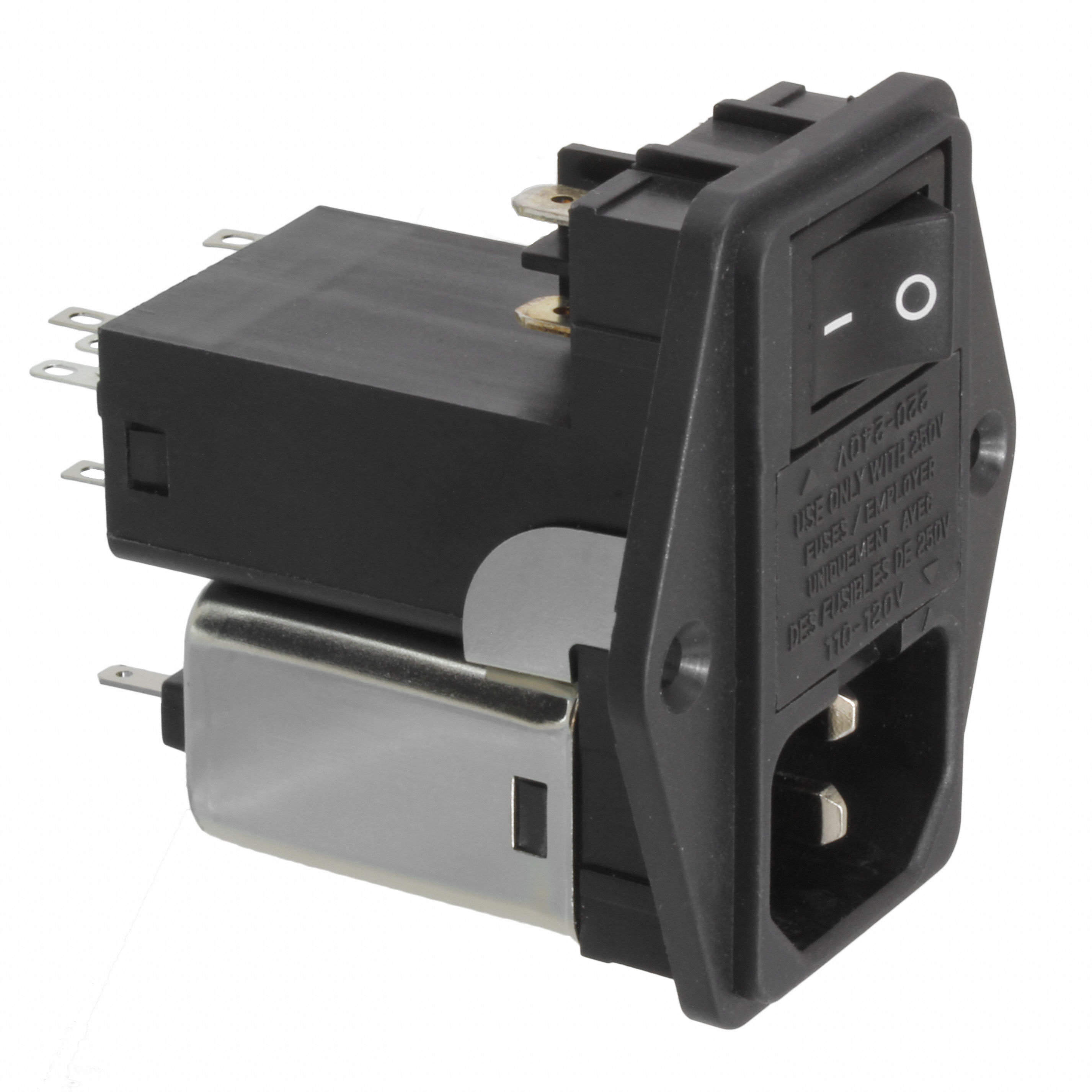

10SB3

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10SB3	10SB Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	-	10 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm	28.5 mm
Panel Cutout Dimensions [y]	55.9 mm	55.9 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	Solder Eyelet	Solder Eyelet
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Switch Features	Current Rating - Appliance Inlet	Filter Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Approval Agency	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Connector Style	Fuse Holder, Drawer	Current Rating - Filter
Delta Electronics 10SB3S	Receptacle, Male Blades - Module	Switch On-Off	10 A	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	55.9 mm	28.5 mm	Solder Eyelet	CSA, UL, VDE	115 VAC	250 VAC	IEC 320-C14	Fuse Holder
Delta Electronics 10SB3	Receptacle, Male Blades - Module	Switch On-Off	10 A	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	55.9 mm	28.5 mm	Solder Eyelet	CSA, UL, VDE	115 VAC	250 VAC	IEC 320-C14	Fuse Holder, Twin Fused
Delta Electronics 10SB3SM	Receptacle, Male Blades - Module	Switch On-Off	10 A	Filtered (EMI, RFI) - Commercial, Medical	Flange, Panel Mount	55.9 mm	28.5 mm	Solder Eyelet	CSA, UL, VDE	115 VAC	250 VAC	IEC 320-C14	Fuse Holder
Delta Electronics 10SB4	Receptacle, Male Blades - Module		10 A	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount	55.9 mm	28.5 mm	Solder Eyelet	CSA, UL, VDE	115 VAC	250 VAC	IEC 320-C14	Fuse Holder, Twin Fused	10 A
Delta Electronics 10SB3M	Receptacle, Male Blades - Module	Switch On-Off	10 A	Filtered (EMI, RFI) - Commercial, Medical	Flange, Panel Mount	55.9 mm	28.5 mm	Solder Eyelet	CSA, UL, VDE	115 VAC	250 VAC	IEC 320-C14	Fuse Holder, Twin Fused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 21.25

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
