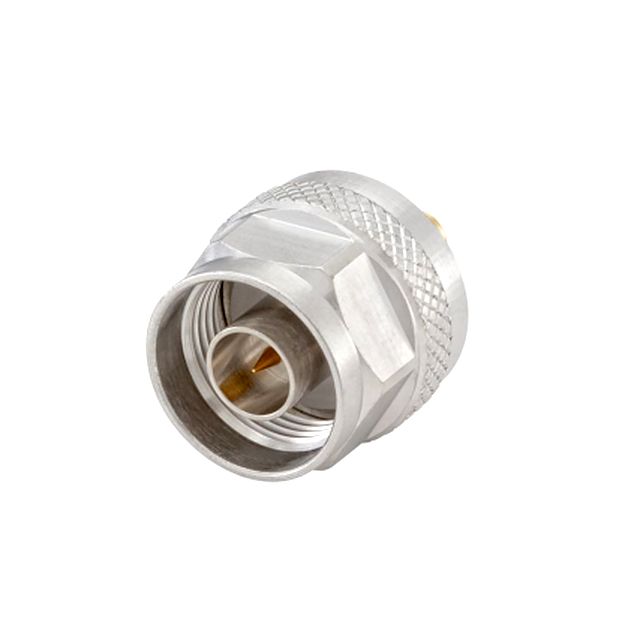

53S132-K00L5

Active

Rosenberger

CONN ADAPT N PLUG TO SMA JACK

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT N PLUG TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53S132-K00L5

Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mounting Type	Mating Cycles	Conversion Type	Adapter Type	Body Finish	Convert From (Adapter End)	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Body Material	Impedance	Center Contact Material	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Style
Rosenberger 53S132-K00L5	Free Hanging (In-Line)	500	Between Series	Plug to Jack	Gold Nickel	N Plug Male Pin	Gold	Polytetrafluoroethylene (PTFE)	12 GHz	Beryllium Copper Brass	50 Ohms	Beryllium Copper	Female Socket SMA Jack	155 °C	-55 °C	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
