106774-1
ActiveTE Connectivity AMP Connectors

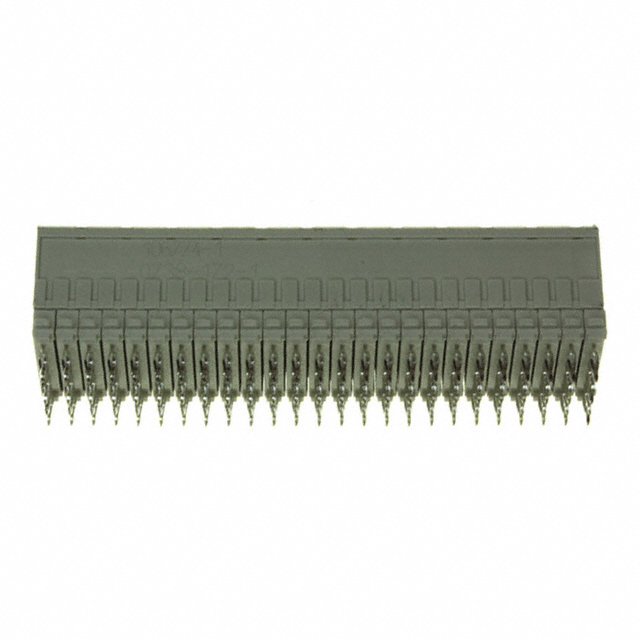

CONN RECEPT 125POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 106774-1 |
|---|---|
| Connector Style | B 25 |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
106774 Series
CONN RECEPT 125POS 2MM PRESS-FIT
| Part | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Type | Current Rating (Amps) | Voltage Rating | Pitch [x] | Pitch [x] | Connector Usage | Number of Positions | Mounting Type | Number of Positions Loaded | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 106774-1 | B 25 | 0.76 Ám | 30 Áin | Press-Fit | Receptacle, Female Sockets | 1.5 A | 500 VAC | 0.079 in | 2 mm | Backplane | 125 | Through Hole | All | 5 | -55 °C | 125 °C | Gold |
Description
General part information
106774 Series
125 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole
