Q-0H00R000S1.5M

Active

Amphenol Custom Cable

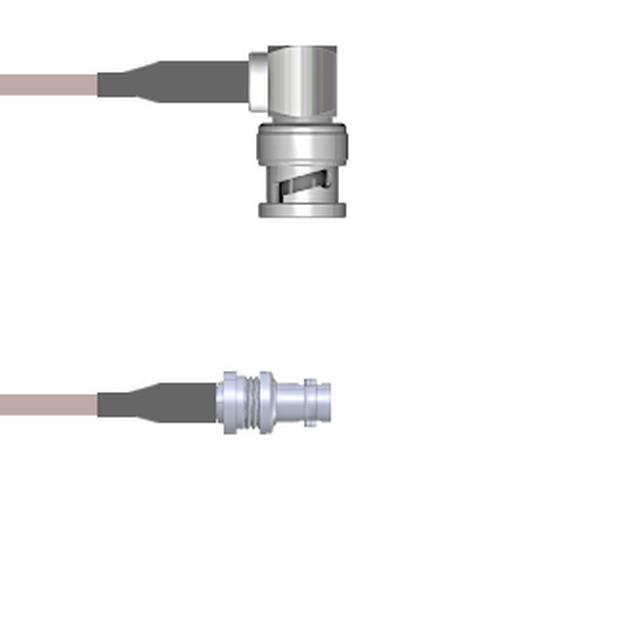

CBL ASSY BNC-HDBNC PLG-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0H00R000S1.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLG-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0H00R000S1.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-0H00R0 Series

Part	2nd Connector Mounting Type	Style	Color	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Feature	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	1st Connector	Length	Length	Length	Cable Type	Features	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0H00R000S108i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	2.7 m	9 ft	108 in	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S0.5M	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	50 cm		19.69 "	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S.75M	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	750 mm		29.53 "	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S.25M	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle				RG-179	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-0H00R000S048i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	1200 mm	4 ft	48 in	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S018i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle				RG-179	Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0H00R000S084i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	2.1 m	7 ft	84 in	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S1.5M	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	1.5 m	4.9 ft	59.1 in	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S036i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	91.44 cm		36 in	RG-179	Shielded
Amphenol Custom Cable Q-0H00R000S003i	Panel Mount	BNC to HD-BNC	Copper	4 GHz	75 Ohms	Bulkhead - Front Side Nut	Female	Male	Free Hanging (In-Line)	BNC Plug Right Angle	76.2 mm		3 in	RG-179	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.45
		25	$ 90.77
		50	$ 84.08
		100	$ 78.35
		250	$ 73.57

Description

General part information

Q-0H00R0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-179 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
