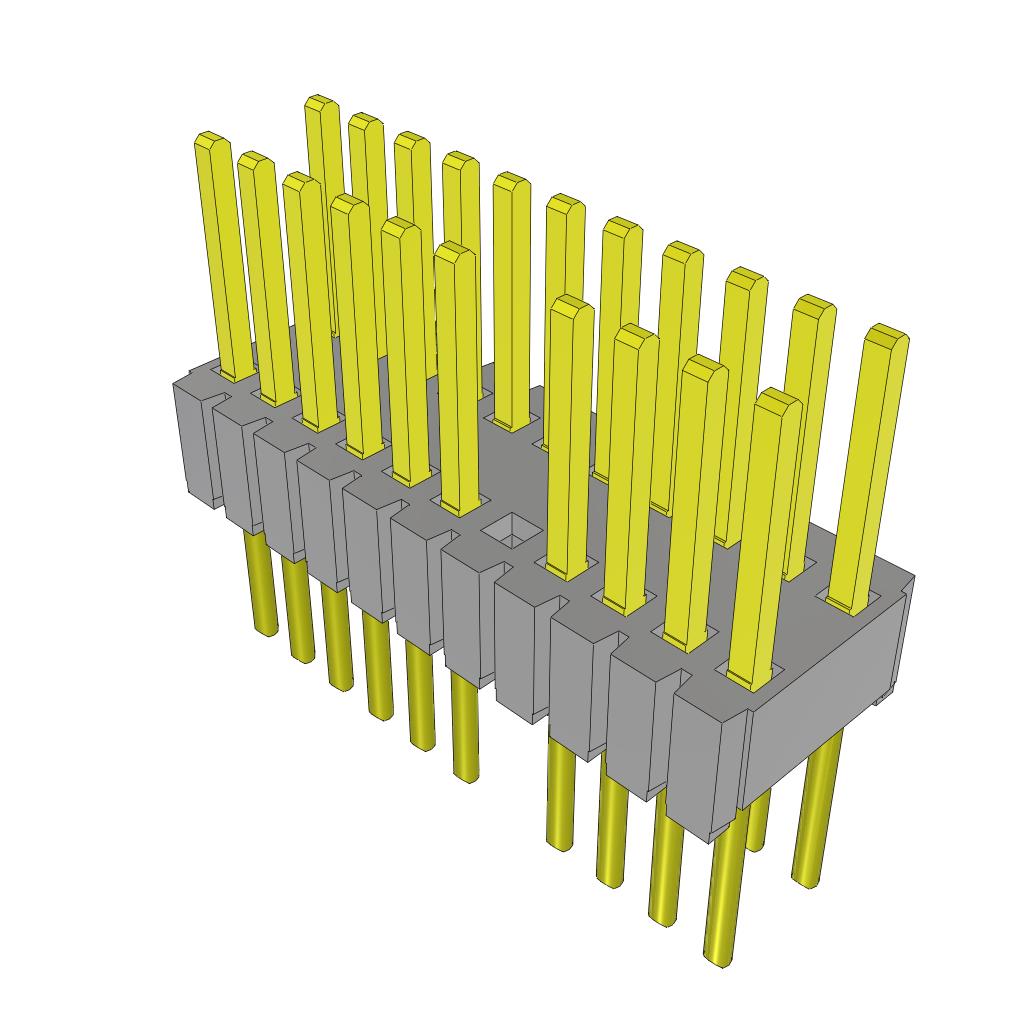

MTMS-111-01-G-D-190-013

Active

Samtec Inc.

.050" X .100" VARIABLE POST HEIG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTMS-111-01-G-D-190-013

Active

Samtec Inc.

.050" X .100" VARIABLE POST HEIG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTMS-111-01-G-D-190-013

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.19 "
Contact Length - Mating	4.83 mm
Contact Length - Post	4.06 mm
Contact Length - Post	0.16 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

MTMS-111 Series

Part	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Termination	Number of Rows	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Contact Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Overall Contact Length	Overall Contact Length	Shrouding	Contact Shape	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded
Samtec Inc. MTMS-111-01-F-S-230	11	0.23 in	5.84 mm	Tin	Solder	1	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm	3 µin	0.076 µm	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze	All	-55 °C	125 °C	Header	0.45 "	11.43 mm	Unshrouded	Square
Samtec Inc. MTMS-111-56-G-S-405	11		10.29 mm	Gold	Solder	1	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm	10 çin	0.25 çm	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze	All	-55 °C	125 °C	Header	0.625 in	15.88 mm	Unshrouded	Square	Flash	0.405 in
Samtec Inc. MTMS-111-01-G-D-190-013	22 positions		4.83 mm	Gold	Solder	2	Liquid Crystal Polymer (LCP)			10 çin	0.25 çm	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze		-55 °C	125 °C	Header	0.45 "	11.43 mm	Unshrouded	Square	Flash	0.19 "	4.06 mm	0.16 in	2.54 mm	0.1 in	21
Samtec Inc. MTMS-111-53-S-S-250	11		6.35 mm	Tin	Solder	1	Liquid Crystal Polymer (LCP)			30 Áin	0.76 Ám	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze	All	-55 °C	125 °C	Header	0.505 in	12.83 mm	Unshrouded	Square		0.25 in	3.94 mm	0.155 "
Samtec Inc. MTMS-111-55-S-S-390	11		9.91 mm	Tin	Solder	1	Liquid Crystal Polymer (LCP)	0.12 in	3.05 mm	30 Áin	0.76 Ám	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze	All	-55 °C	125 °C	Header	0.61 in	15.5 mm	Unshrouded	Square		0.39 in
Samtec Inc. MTMS-111-01-G-D-190-014	22 positions		4.83 mm	Gold	Solder	2	Liquid Crystal Polymer (LCP)			10 çin	0.25 çm	Push-Pull	Through Hole	Black	0.1 in	2.54 mm	Male Pin	Gold	0.05 in	1.27 mm	Phosphor Bronze		-55 °C	125 °C	Header	0.45 "	11.43 mm	Unshrouded	Square	Flash	0.19 "	4.06 mm	0.16 in	2.54 mm	0.1 in	21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.33

Description

General part information

MTMS-111 Series

Connector Header Through Hole 22 position 0.050" (1.27mm)
