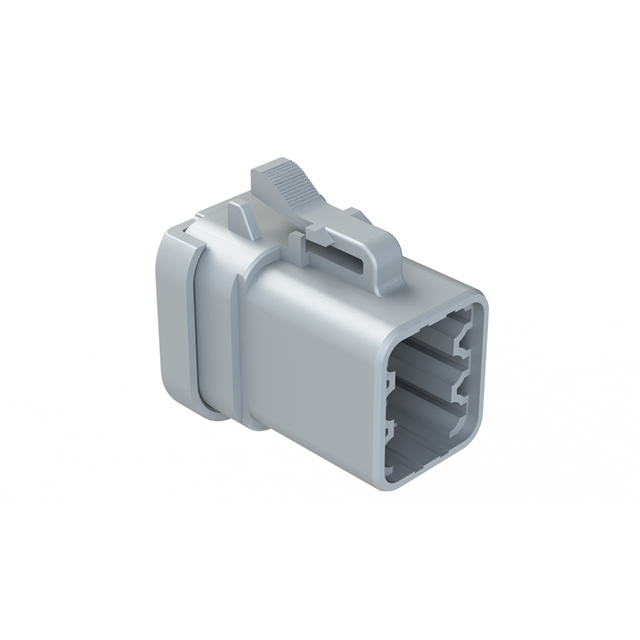

ATP06-6S-MM01
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 6POS
Deep-Dive with AI
Search across all available documentation for this part.
ATP06-6S-MM01
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 6POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP06-6S-MM01 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
ATP06-6S Series
| Part | Contact Type | Contact Termination | Connector Type | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Features | Color | Mounting Type | Note | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Black | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Blue | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Reduced Wire Seals Sealed | Black | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | White | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Yellow | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Black | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Brown | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Black | Free Hanging (In-Line) | Contacts Not Included | 3 |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Gray | Free Hanging (In-Line) | Contacts Not Included | 3 | |
Amphenol Sine Systems Corp | Female Socket | Crimp | Plug | Latch Lock | 6 | -55 °C | 125 °C | Thermoplastic | Sealed | Gray | Free Hanging (In-Line) | Contacts Not Included | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.60 | |
| 10 | $ 3.52 | |||
| 25 | $ 3.17 | |||
| 50 | $ 2.94 | |||
| 100 | $ 2.72 | |||
| 450 | $ 2.32 | |||
| 900 | $ 2.17 | |||
| 1350 | $ 2.08 | |||
| 2700 | $ 1.95 | |||
Description
General part information
ATP06-6S Series
6 Rectangular Connectors - Housings Plug Gray
