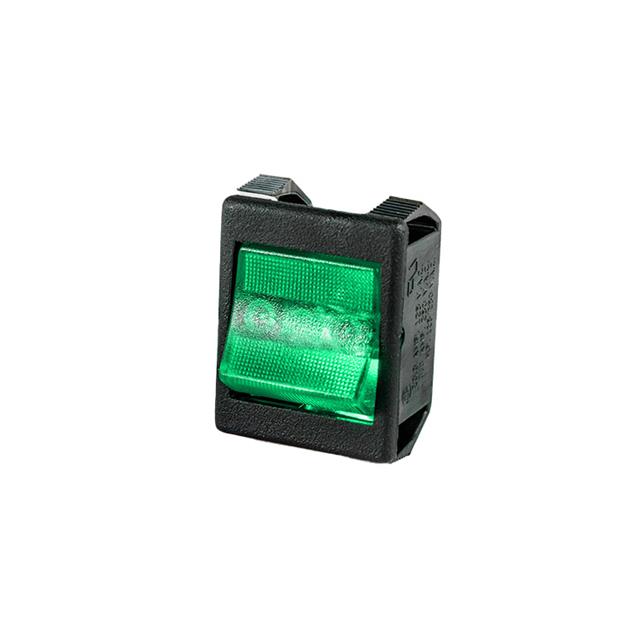

CRTL30A12V3M9

Active

Oslo Switch

SWITCH ROCKER SPDT 20A 125V

Search across all available documentation for this part.

Active

Oslo Switch

SWITCH ROCKER SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CRTL30A12V3M9

Actuator Marking	O -
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	UL, VDE, CSA
Circuit	SPDT
Color - Actuator/Cap	Amber
Current Rating (Amps)	20 A, 14 A
Electrical Life	35000 Cycles
Illumination Type, Color	Amber, Incandescent
Illumination Voltage (Nominal)	12 VAC/DC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.43 mm
Panel Cutout Dimensions [y]	22.35 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

SWITCH ROCKER SPDT 20A 125V

Part	Mechanical Life	Mounting Type	Color - Actuator/Cap	Switch Function	Current Rating (Amps)	Circuit	Illumination Type, Color	Approval Agency	Electrical Life	Termination Style	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Illumination Voltage (Nominal)
Oslo Switch CRTL30A12V3M9	100000 Cycles	Panel Mount, Snap-In	Amber	On-Off-On	14 A, 20 A	SPDT	Amber, Incandescent	CSA, UL, VDE	35000 Cycles	Quick Connect - 0.250" (6.3mm)	14 V	125 V	Concave (Curved) - Illuminated	27.43 mm	22.35 mm	O -	12 VAC/DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.69

General part information

Rocker Switch SPDT 20A (AC), 14A (DC) 125 V Panel Mount, Snap-In
