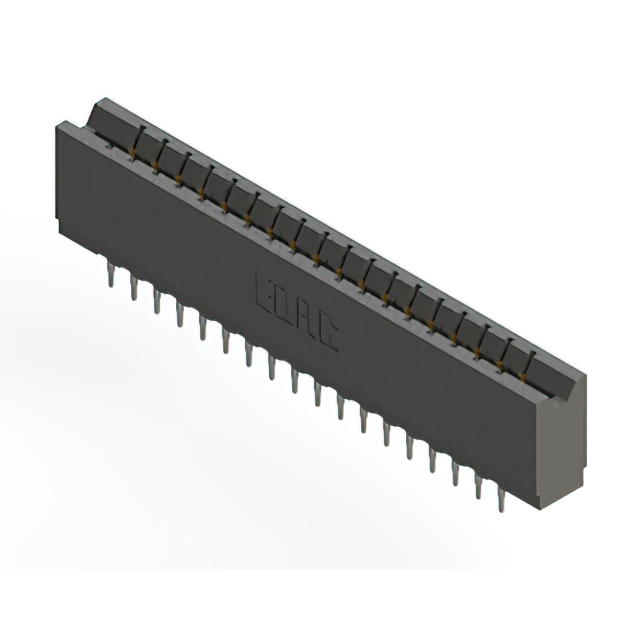

737-036-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

737-036-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 36POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-036-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-036 Series

Part	Contact Type	Number of Positions/Bay/Row [custom]	Termination	Gender	Read Out	Color	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation
EDAC Inc. 737-036-520-201	Cantilever	18	Press-Fit	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-560-201	Cantilever Make Before Break	18	Press-Fit	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-522-101	Cantilever	36	Press-Fit	Female	Single	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Single Edge	0.156 in	3.96 mm	36	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-525-201	Cantilever	18	Press-Fit	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-541-206	Cantilever	18	Press-Fit Wire Wrap	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-545-106	Cantilever	36	Press-Fit Wire Wrap	Female	Single	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Single Edge	0.156 in	3.96 mm	36	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-520-106	Cantilever	36	Press-Fit	Female	Single	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Single Edge	0.156 in	3.96 mm	36	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-560-206	Cantilever Make Before Break	18	Press-Fit	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-545-206	Cantilever	18	Press-Fit Wire Wrap	Female	Dual	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Dual Edge	0.156 in	3.96 mm	36	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic
EDAC Inc. 737-036-520-101	Cantilever	36	Press-Fit	Female	Single	Black	Gold	Through Hole	0.76 Ám	30 Áin	Copper Alloy	-40 °C	105 ░C	Non Specified - Single Edge	0.156 in	3.96 mm	36	1	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.78

Description

General part information

737-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
