ERA.0S.403.CLL

Active

LEMO

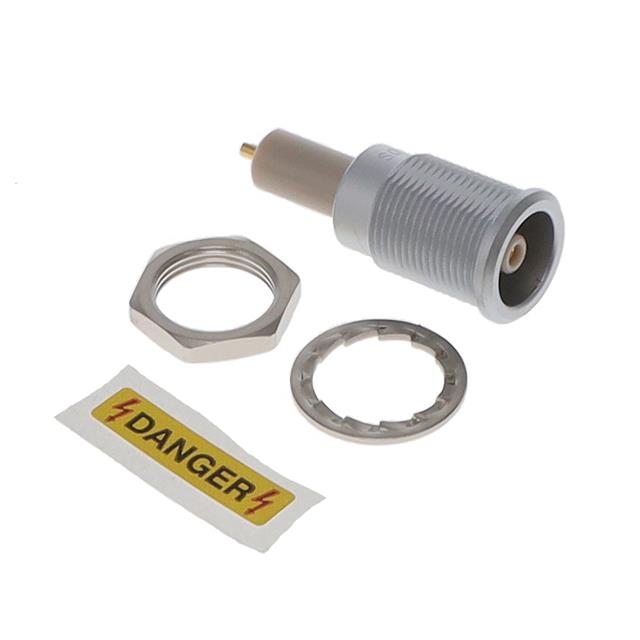

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.0S.403.CLL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.59
		10	$ 28.55
		25	$ 26.76
		50	$ 25.49
		100	$ 24.27
		250	$ 22.75

Description

General part information

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.0S.403.CLL	ERA.0S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Receptacle, Female Sockets	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets, Male Pin
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	4 A	4 - 12 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Ports	-	1
Number of Positions	1	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	403	116 - 405
Shield Termination	-	Solder
Shielding	Shielded	Shielded
Termination	-	Solder

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Part	Termination	Current Rating (Amps)	Shell Finish	Material Flammability Rating	Primary Material	Insert Material	Shell Material	Number of Positions	Orientation	Mounting Feature	Fastening Type	Mounting Type	Shell Size - Insert	Connector Type	Shielding	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Ingress Protection	Center Contact Plating	Connector Style	Dielectric Material	Impedance	Number of Ports	Housing Color	Center Contact Material	Shield Termination	Cable Group	Contact Termination	Body Finish	Mating Cycles	Includes	Body Material
LEMO ERA.0S.304.CLN	Solder	7 A	Chrome	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	4	Keyed	Bulkhead - Rear Side Nut	Push-Pull	Panel Mount, Through Hole	304	Female Sockets, Male Pins, Receptacle	Shielded	Gold	Silver	-55 °C	250 °C	Brass, Bronze	IP50
LEMO ERA.0S.403.CTA		4 A	Chrome		Metal	Polytetrafluoroethylene (PTFE)	Brass	1	Keyed	Bulkhead - Rear Side Nut	Push-Pull		403	Male Pins, Receptacle	Shielded	Gold	Silver	-55 °C	250 °C	Brass	IP50
LEMO ERA.0S.650.CTL										Bulkhead - Rear Side Nut	Push-Pull			Female Socket, Receptacle				-55 °C	250 °C		IP50	Gold	Triaxial	Polytetrafluoroethylene (PTFE)	50 Ohms	1	Silver	Beryllium Copper	Solder	178, RG-174	Solder Cup	Chrome	1000	1 Connector, 1 Lockwasher, 1 Nut	Brass
LEMO ERA.0S.403.CLL		4 A	Chrome	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	1	Keyed	Bulkhead - Rear Side Nut	Push-Pull		403	Receptacle, Female Sockets	Shielded	Gold	Silver	-55 °C	250 °C	Bronze	IP50
LEMO ERA.0S.650.CTN										Bulkhead - Rear Side Nut	Push-Pull			Female Socket, Receptacle				-55 °C	250 °C		IP50	Gold	Triaxial	Polytetrafluoroethylene (PTFE)	50 Ohms	1	Silver	Beryllium Copper	Solder	178, RG-174	Solder Cup	Chrome	1000	1 Connector, 1 Lockwasher, 1 Nut	Brass
LEMO ERA.0S.304.CLL		7 A	Chrome	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass	4	Keyed	Bulkhead - Rear Side Nut	Push-Pull		304	Female Sockets, Male Pins, Receptacle	Shielded	Gold	Silver	-55 °C	250 °C	Brass, Bronze	IP50
LEMO ERA.0S.403.CTL		4 A	Chrome		Metal	Polytetrafluoroethylene (PTFE)	Brass	1	Keyed	Bulkhead - Rear Side Nut	Push-Pull		403	Receptacle, Female Sockets	Shielded	Gold	Silver	-55 °C	250 °C	Bronze	IP50
LEMO ERA.0S.650.CTA										Bulkhead - Rear Side Nut	Push-Pull			Male Pin, Receptacle				-55 °C	250 °C		IP50	Gold	Triaxial	Polytetrafluoroethylene (PTFE)	50 Ohms	1	Silver	Beryllium Copper	Solder	178, RG-174	Solder Cup	Chrome	1000	1 Connector, 1 Lockwasher, 1 Nut	Brass
LEMO ERA.0S.303.CLL		7 A	Chrome	UL94 V-0	Metal	Polyetheretherketone (PEEK)	Brass		Keyed	Bulkhead - Rear Side Nut	Push-Pull		303	Female Sockets, Male Pins, Receptacle	Shielded	Gold	Silver	-55 °C	250 °C	Brass, Bronze	IP50
LEMO ERA.0S.650.CTAZ										Bulkhead - Rear Side Nut	Push-Pull			Male Pin, Receptacle				-55 °C	250 °C		IP50	Gold	Triaxial	Polytetrafluoroethylene (PTFE)	50 Ohms	1	Silver	Beryllium Copper	Solder	178, RG-174	Solder Cup	Chrome	1000	1 Connector, 1 Lockwasher, 1 Nut	Brass
