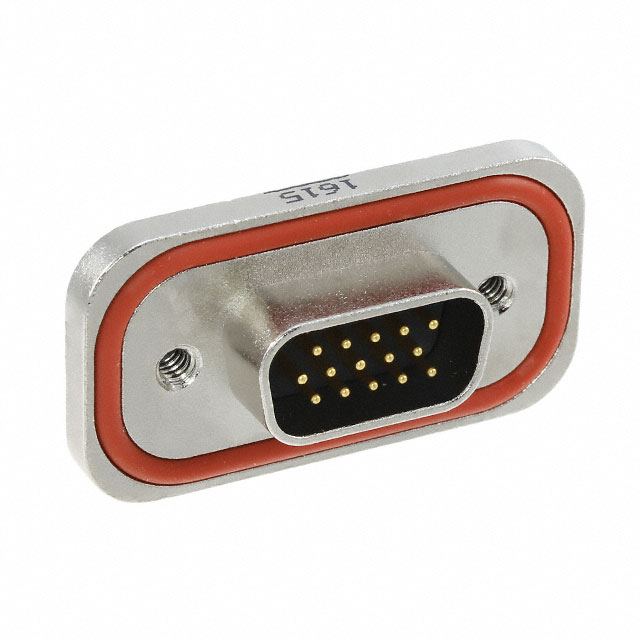

Specification	MDBRE15PEAN0

Color	Black
Connector Layout	High Density, DE, E
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shell Material	Zinc
Shell Size	1
Termination	Solder
Voltage Rating	200 VDC

MDBRE15 Series

Part	Termination	Shell Material	Finish	Number of Rows	Features	Flange Feature	Connector Type	Current Rating	Ingress Protection IP Rating	Ingress Protection Description	Connector Style	Material Flammability Rating	Number of Positions	Contact Type	Mounting Type	Contact Finish	Contact Finish Thickness	Shell Size	Connector Layout	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Color	Dielectric Material	Contact Form
Amphenol ICC (Commercial Products) MDBRE15SEJNO	Solder	Zinc	Nickel Plated	3	Board Lock	Housing Shell (M3)	Female Sockets Receptacle	3 A	IP68	Dust Tight Waterproof	D-Sub High Density	UL94 V-0	15	Signal	Panel Mount Through Hole	Gold	50 µin	1	DE E High Density	Copper Alloy	-40 °C	105 °C	200 VDC	Black	Glass Filled Thermoplastic
Amphenol ICC (Commercial Products) MDBRE15SMAN0	Solder Cup	Zinc	Nickel Plated	3	Board Lock	Housing Shell (4-40)	Female Sockets Receptacle	3 A	IP68	Dust Tight Waterproof	D-Sub High Density	UL94 V-0	15	Signal	Panel Mount	Gold	30 µin	1	DE E High Density	Copper Alloy	-40 °C	105 °C	200 VDC	Black	Glass Filled Thermoplastic	Machined
Amphenol ICC (Commercial Products) MDBRE15SMJN0	Solder Cup	Zinc	Nickel Plated	3	Board Lock	Housing Shell (M3)	Female Sockets Receptacle	3 A	IP68	Dust Tight Waterproof	D-Sub High Density	UL94 V-0	15	Signal	Panel Mount	Gold	30 µin	1	DE E High Density	Copper Alloy	-40 °C	105 °C	200 VDC	Black	Glass Filled Thermoplastic	Machined
Amphenol ICC (Commercial Products) MDBRE15PEAN0	Solder	Zinc	Nickel Plated	3	Board Lock	Housing Shell (4-40)	Male Pins Plug	3 A	IP68	Dust Tight Waterproof	D-Sub High Density	UL94 V-0	15	Signal	Panel Mount Through Hole	Gold	50 µin	1	DE E High Density	Copper Alloy	-40 °C	105 °C	200 VDC	Black	Glass Filled Thermoplastic
Amphenol ICC (Commercial Products) MDBRE15PMAN0	Solder Cup	Zinc	Nickel Plated	3	Board Lock	Housing Shell (4-40)	Male Pins Plug	3 A	IP68	Dust Tight Waterproof	D-Sub High Density	UL94 V-0	15	Signal	Panel Mount	Gold	30 µin	1	DE E High Density	Copper Alloy	-40 °C	105 °C	200 VDC	Black	Glass Filled Thermoplastic	Machined
