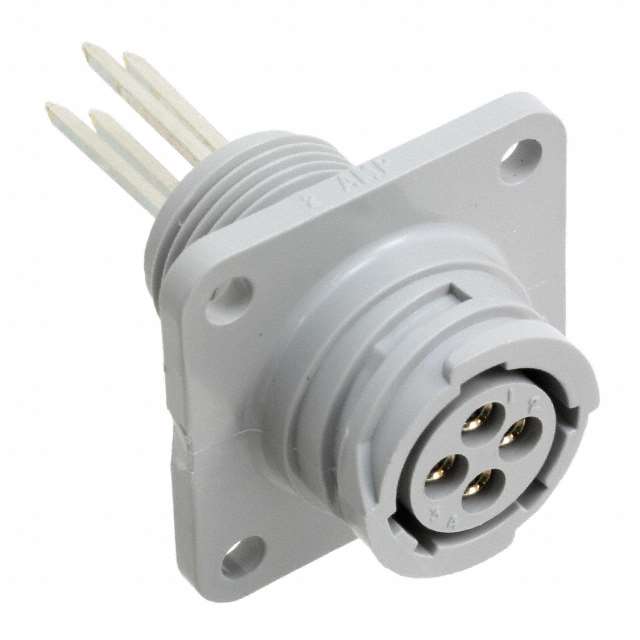

1-788130-1

Active

TE Connectivity AMP Connectors

CONN RCPT FMALE 4POS TIN SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT FMALE 4POS TIN SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-788130-1

Connector Type	Receptacle, Female Sockets
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Material	Brass
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Plastic
Shell Size - Insert	11-4
Termination	Solder
Voltage Rating	250 VAC

CONN RCPT FMALE 4POS TIN SOLDER

Part	Shell Size - Insert	Primary Material	Material Flammability Rating	Number of Positions	Voltage Rating	Termination	Connector Type	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Mounting Type	Contact Material
TE Connectivity AMP Connectors 1-788130-1	11-4	Plastic	UL94 V-0	4	250 VAC	Solder	Receptacle, Female Sockets	A	2.54 çm	100 çin	105 ░C	-55 °C	Flange	Panel Mount, Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
