MMCX-5305

Obsolete

Harwin Inc.

CONN MMCX JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

MMCX-5305

Obsolete

Harwin Inc.

CONN MMCX JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

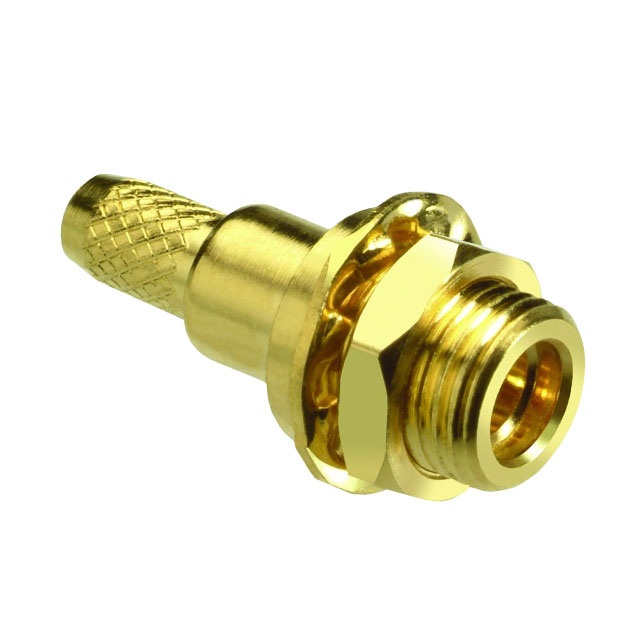

MMCX Connector Jack, Female Socket 50 Ohms Panel Mount Crimp

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MMCX-5305	- Series

Body Finish	Gold	Gold, Silver
Body Material	Brass	Brass, Phosphor Bronze
Cable Group	RG-174, 188, 316	RG-178, RG-174, 188, 316
Cable Group	-	196
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	MMCX	MMCX, U.FL (UMCC)
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Glass Filled
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Sleeve, 1 Washer, 1 Connector, 1 Nut, 1 Contact	1 Sleeve, 1 Washer, 1 Connector, 1 Nut, 1 Contact
Insertion Loss	0.2 dB	0.2 - 0.3 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Free Hanging (In-Line), Right Angle, Through Hole, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	90 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -40 ░C
Shield Termination	Crimp	Crimp, Solder
Voltage Rating	170 V	170 V

- Series

CONN MMCX PLUG R/A 50 OHM SOLDER

Part	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Material	Impedance	Connector Style	Voltage Rating	Body Material	Mounting Type	Mating Cycles	Fastening Type	Housing Color	Number of Ports	Cable Group	Cable Group	Frequency - Max [Max]	Insertion Loss	Body Finish	Center Contact Plating	Shield Termination	Includes	Mounting Feature
Harwin Inc. MMCX-6505	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	-65 ░C	165 °C	Solder	Brass	50 Ohms	MMCX	170 V	Brass	Free Hanging (In-Line), Right Angle	500	Snap-On	Gold	1	196	RG-178	6000 MHz	0.3 dB	Gold	Gold	Crimp
Harwin Inc. MMCX-5005	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	-65 ░C	165 °C	Crimp	Beryllium Copper	50 Ohms	MMCX	170 V	Brass	Free Hanging (In-Line)	500	Snap-On	Gold	1	196	RG-178	6000 MHz	0.2 dB	Gold	Gold	Crimp
Harwin Inc. UMCP-8020005	Polybutylene Terephthalate (PBT), Glass Filled	Male Pin, Plug	-40 °C	90 °C	Crimp	Phosphor Bronze		U.FL (UMCC)		Phosphor Bronze	Free Hanging (In-Line), Right Angle		Snap-On	Silver	1			6000 MHz		Silver	Gold	Crimp
Harwin Inc. MMCX-3505	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	-65 ░C	165 °C	Solder	Beryllium Copper	50 Ohms	MMCX	170 V	Brass	Through Hole, Right Angle	500	Snap-On	Gold	1			6000 MHz	0.3 dB	Gold	Gold	Solder
Harwin Inc. MMCX-5305	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	-65 ░C	165 °C	Crimp	Beryllium Copper	50 Ohms	MMCX	170 V	Brass		500	Snap-On	Gold	1		188, 316, RG-174	6000 MHz	0.2 dB	Gold	Gold	Crimp	1 Connector, 1 Contact, 1 Nut, 1 Sleeve, 1 Washer	Bulkhead - Front Side Nut
