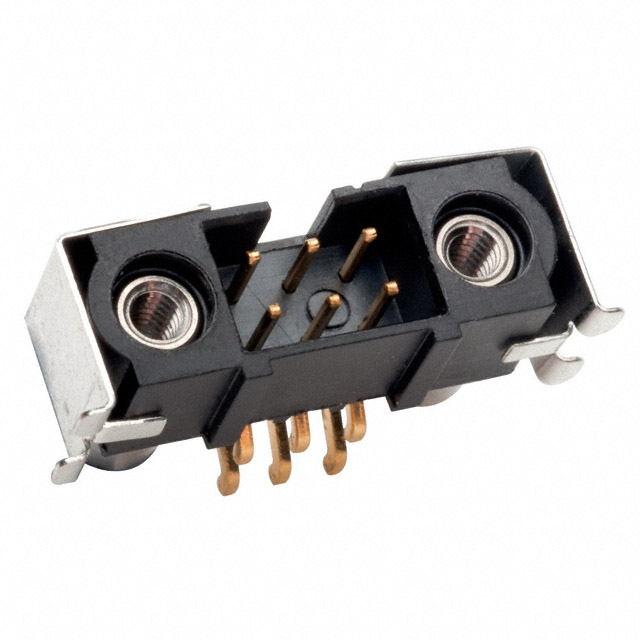

M80-5S20605MQ

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 6 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +3

M80-5S20605MQ

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 6 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5S20605MQ

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	29.5 µin
Contact Finish Thickness - Post	0.75 µm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mating Flange, Mating Hardware, Solder Retention, Keying Slot
Insulation Color	Black
Insulation Height	0.246 in
Insulation Height	6.25 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-5S2 Series

Part	Shrouding	Insulation Material	Features	Style	Number of Rows	Mounting Type	Voltage Rating	Number of Positions	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Termination	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post
Harwin Inc. M80-5S20642MQ	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	2	Surface Mount Right Angle	800 VAC	6	Tin	Black	All	Male Pin	0.246 in	6.25 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.3 µm	12 µin	UL94 V-0	Solder	Brass	0.079 in	2 mm
Harwin Inc. M80-5S20805MQ	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable	2	Surface Mount Right Angle	800 V	8	Gold	Black	All	Male Pin	0.246 in	6.25 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.75 µm		UL94 V-0	Solder	Brass	0.079 in	2 mm	29.5 µin
Harwin Inc. M80-5S20605MQ	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Keying Slot Mating Flange Mating Hardware Solder Retention	Board to Board Cable	2	Surface Mount Right Angle	800 V	6	Gold	Black	All	Male Pin	0.246 in	6.25 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.75 µm		UL94 V-0	Solder	Brass	0.079 in	2 mm	29.5 µin
Harwin Inc. M80-5S20842MQ	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	2	Surface Mount Right Angle	800 VAC	8	Tin	Black	All	Male Pin	0.246 in	6.25 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.3 µm	12 µin	UL94 V-0	Solder	Brass	0.079 in	2 mm
Harwin Inc. M80-5S25022M3	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Jackscrews Keying Slot Mating Flange	Board to Board Cable	2	Surface Mount Right Angle	800 VAC	50	Tin-Lead	Black	All	Male Pin	0.238 in	6.05 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.3 µm	12 µin	UL94 V-0	Solder	Brass	0.079 in	2 mm
Harwin Inc. M80-5S24422M3	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Jackscrews Keying Slot Mating Flange	Board to Board Cable	2	Surface Mount Right Angle	800 VAC	44	Tin-Lead	Black	All	Male Pin	0.238 in	6.05 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.3 µm	12 µin	UL94 V-0	Solder	Brass	0.079 in	2 mm
Harwin Inc. M80-5S21222MR
Harwin Inc. M80-5S21042MQ	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	2	Surface Mount Right Angle	800 VAC	10	Tin	Black	All	Male Pin	0.246 in	6.25 mm	-55 °C	125 °C	Header	Gold	29.5 Áin	0.75 Ám	Circular	0.079 in	2 mm	2.2 A	0.3 µm	12 µin	UL94 V-0	Solder	Brass	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	260	$ 49.09
Newark	Each	10	$ 57.57
		25	$ 55.35

Description

General part information

M80-5S2 Series

Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
