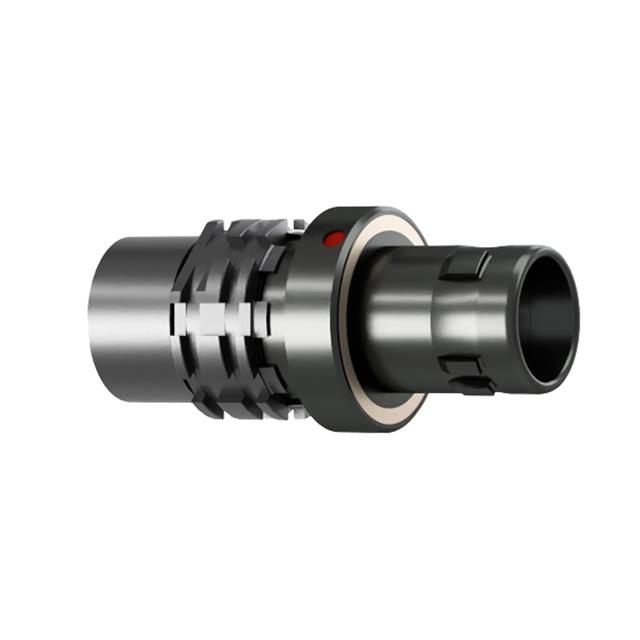

A10YBR-P09XCD0-0000

Active

ODU

ODU AMC PLUG, BREAK APART, SZ 0,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10YBR-P09XCD0-0000

Active

ODU

ODU AMC PLUG, BREAK APART, SZ 0,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.55

Description

General part information

A10YBR-P Series

9 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A10YBR-P09XCD0-0000	A10YBR-P Series

Applications	Medical, Industrial, Military	Medical, Industrial, Military
Backshell Material, Plating	Ruthenium over Electroless Nickel, Aluminum	Ruthenium over Electroless Nickel, Aluminum
Cable Opening [diameter]	5.5 mm	5.5 mm
Cable Opening [diameter]	0.217 in	0.217 in
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1.27 µm	1.27 µm
Contact Finish Thickness - Mating	50 µin	50 µin
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	2 - 7 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP68, IP69K	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	9	4 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-51 °C	-51 °C
Orientation	B	B
Primary Material	Metal	Metal
Shell Finish	Ruthenium over Electroless Nickel	Ruthenium over Electroless Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	0	0
Shielding	Shielded	Shielded
Voltage Rating	200 V	200 - 300 VDC

A10YBR-P Series

ODU AMC PLUG, STY 1, SZ 0, 4P, S

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Number of Positions	Contact Finish - Mating	Shell Finish	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insert Material	Current Rating (Amps)	Fastening Type	Backshell Material, Plating	Contact Material	Material Flammability Rating	Voltage Rating	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Orientation	Shell Material	Color	Shielding	Applications
ODU A10YBR-P04XFG0-0000	-51 °C	125 °C	Free Hanging (In-Line)	IP68, IP69K	4	Gold	Ruthenium over Electroless Nickel	Backshell	1.27 µm	50 µin	Male Pins, Plug	Polyetheretherketone (PEEK)	7 A	Push-Pull	Aluminum, Ruthenium over Electroless Nickel	Copper Alloy	UL94 V-0	300 VDC	5.5 mm	0.217 in	Metal	B	Aluminum	Silver	Shielded	Industrial, Medical, Military
ODU A10YBR-P07XCD0-0000	-51 °C	125 °C	Free Hanging (In-Line)	IP68, IP69K	7	Gold	Ruthenium over Electroless Nickel	Backshell	1.27 µm	50 µin	Male Pins, Plug	Polyetheretherketone (PEEK)	5 A	Push-Pull	Aluminum, Ruthenium over Electroless Nickel	Copper Alloy	UL94 V-0	300 VDC	5.5 mm	0.217 in	Metal	B	Aluminum	Silver	Shielded	Industrial, Medical, Military
ODU A10YBR-P09XCD0-0000	-51 °C	125 °C	Free Hanging (In-Line)	IP68, IP69K	9	Gold	Ruthenium over Electroless Nickel	Backshell	1.27 µm	50 µin	Male Pins, Plug	Polyetheretherketone (PEEK)	5 A	Push-Pull	Aluminum, Ruthenium over Electroless Nickel	Copper Alloy	UL94 V-0	200 V	5.5 mm	0.217 in	Metal	B	Aluminum	Silver	Shielded	Industrial, Medical, Military
ODU A10YBR-P10XCD0-0000	-51 °C	125 °C	Free Hanging (In-Line)	IP68, IP69K	10	Gold	Ruthenium over Electroless Nickel	Backshell	1.27 µm	50 µin	Male Pins, Plug	Polyetheretherketone (PEEK)	5 A	Push-Pull	Aluminum, Ruthenium over Electroless Nickel	Copper Alloy	UL94 V-0	200 V	5.5 mm	0.217 in	Metal	B	Aluminum	Silver	Shielded	Industrial, Medical, Military
ODU A10YBR-P07WDD0-R000	-51 °C	125 °C	Free Hanging (In-Line)	IP68, IP69K	7	Gold	Ruthenium over Electroless Nickel	Backshell	1.27 µm	50 µin	Male Pins, Plug	Polyetheretherketone (PEEK)	2 A	Push-Pull	Aluminum, Ruthenium over Electroless Nickel	Copper Alloy	UL94 V-0	300 VDC	5.5 mm	0.217 in	Metal	B	Aluminum	Silver	Shielded	Industrial, Medical, Military
