90023-AS

Active

Preci-Dip

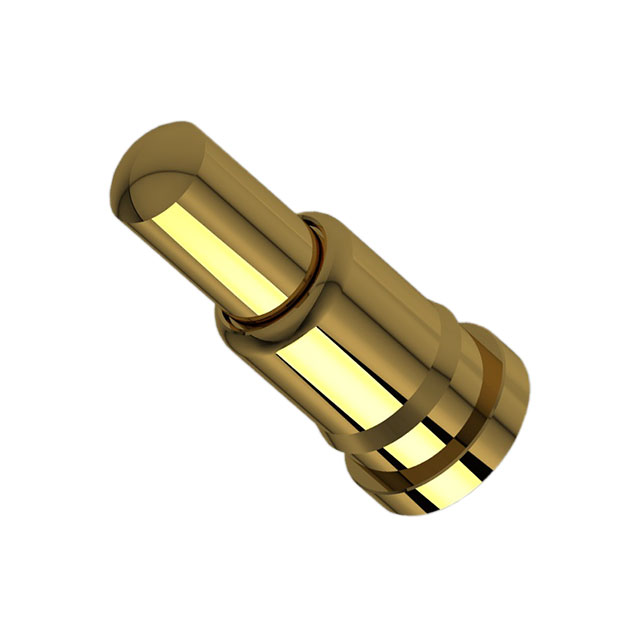

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Active

Preci-Dip

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	90023-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.177 in
Maximum Working Height [Max]	4.5 mm
Minimum Working Height [Min]	3.1 mm
Minimum Working Height [Min]	0.122 in
Mounting Type	Surface Mount
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	61.18 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [custom]	1.83 mm
Pad Layout Dimension [custom]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

CONTACT SPRING LOADED SMD GOLD

Part	Maximum Working Height [Max]	Maximum Working Height [Max]	Operating Force - Initial	Minimum Working Height [Min]	Minimum Working Height [Min]	Plunger Size [diameter]	Plunger Size [diameter]	Mounting Type	Current Rating (Amps)	Contact Material	Contact Finish	Contact Type	Mating Cycles	Pad Layout Dimension [custom]	Pad Layout Dimension [custom]	Operating Force - Mid Compression	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness
Preci-Dip 90023-AS	0.177 in	4.5 mm	25.49 gf	3.1 mm	0.122 in	0.042 in	1.07 mm	Surface Mount	3 A	Brass Alloy	Gold	Sleeve & Plunger (Pogo Pins)	40000	1.83 mm	0.072 in	61.18 gf	-55 °C	125 °C	0.51 µm	20 µin
