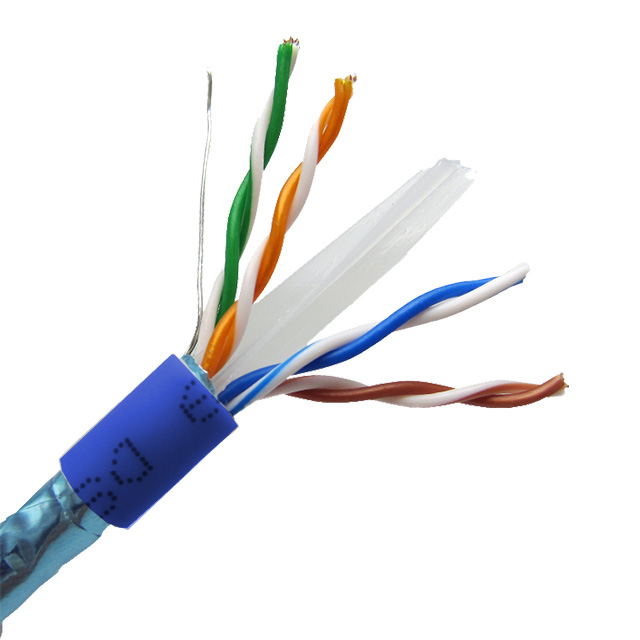

IO-E4241S-6CMR-1000B

Obsolete

IO Audio Technologies

CABLE CAT6 8COND 24AWG BLU 1000'

Search across all available documentation for this part.

Obsolete

IO Audio Technologies

CABLE CAT6 8COND 24AWG BLU 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	IO-E4241S-6CMR-1000B

Cable Type	Multi-Pair, Cat6
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.307 in
Jacket (Insulation) Diameter [diameter]	7.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.0236 in
Jacket (Insulation) Thickness	0.6 mm
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Ratings	UL Style CMR
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	24 AWG

CABLE CAT6 8COND 24AWG BLU 1000'

Part	Jacket Color	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Features	Jacket (Insulation) Material	Shield Material	Shield Type	Conductor Insulation	Wire Gauge	Conductor Strand	Length	Length
IO Audio Technologies IO-E4241S-6CMR-1000B	Blue	UL Style CMR	0.0236 in	0.6 mm	Copper, Bare	0.307 in	7.8 mm	8	Multi-Pair, Cat6	Drain Wire	Poly-Vinyl Chloride (PVC)	Aluminum	Foil	High Density Polyethylene (HDPE)	24 AWG	Solid	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Blue 24 AWG Foil 1000.0' (304.8m)
