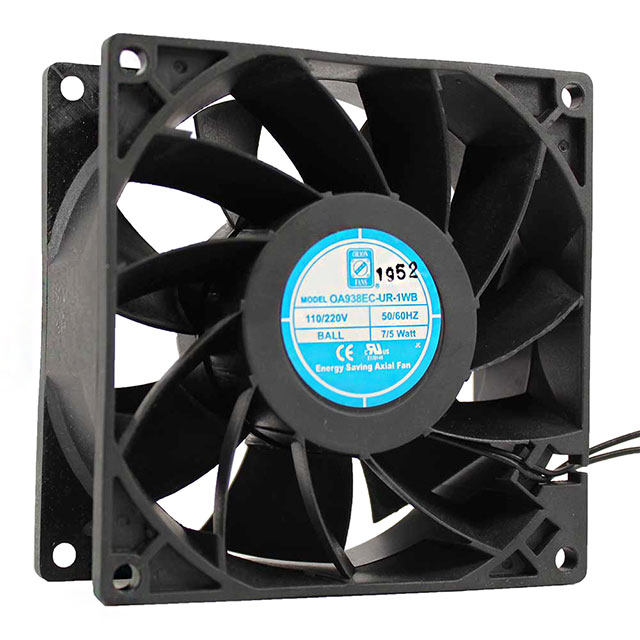

OA938EC-UR-1WB
ActiveOrion Fans
AC AXIAL FAN, 110V / 220V, SQUARE, 92 MM, 38 MM, BALL BEARING, 60 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA938EC-UR-1WB
ActiveOrion Fans
AC AXIAL FAN, 110V / 220V, SQUARE, 92 MM, 38 MM, BALL BEARING, 60 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA938EC-UR-1WB |
|---|---|
| Air Flow | 60 CFM |
| Air Flow | 1.68 mł/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 43 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.2 W |
| RPM | 3000 RPM |
| Static Pressure | 0.27 in H2O |
| Static Pressure | 67.2 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 220 VAC |
| Voltage - Rated [Min] | 110 VAC |
| Voltage Range [Max] | 265 VAC |
| Voltage Range [Min] | 85 VAC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.66 | |
| 10 | $ 28.92 | |||
| 25 | $ 27.82 | |||
| 50 | $ 25.99 | |||
| 100 | $ 23.97 | |||
| 250 | $ 23.61 | |||
Description
General part information
OA938EC Series
Fan Tubeaxial 110/220VAC Square - 92mm L x 92mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads
