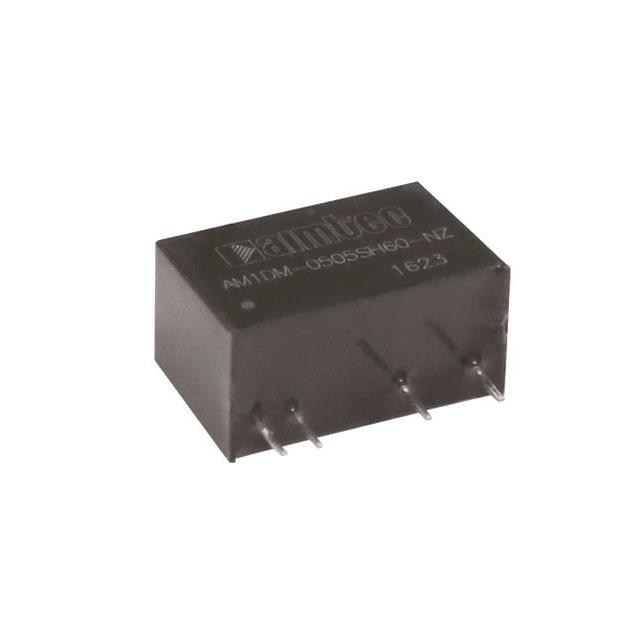

AM1DM-0305SH60-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DM-0305SH60-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.46
		10	$ 6.56
		25	$ 6.23
		50	$ 6.00
		100	$ 5.77
		250	$ 5.48
		500	$ 5.27
		1000	$ 5.07

Description

General part information

AM1DM Series

Isolated Module DC DC Converter 1 Output 5V 200mA 2.97V - 3.63V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1DM-0305SH60-NZ	AM1DM Series

Applications	Medical	Medical
Approval Agency	CE, cURus	CE, cURus
Current - Output (Max)	-	34 mA
Current - Output (Max)	-	42 mA
Current - Output (Max) [Max]	200 mA	42 - 200 mA
Efficiency	71 %	71 - 80 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads, 7-SIP Module, 5 Leads
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [x]	19.5 mm	19.5 mm
Size / Dimension [y]	0.39 "	0.39 "
Size / Dimension [y]	9.8 mm	9.8 mm
Size / Dimension [z]	0.51 in	0.51 in
Size / Dimension [z]	13 mm	13 mm
Supplier Device Package	-	7-SIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	3.63 V	3.63 - 26.4 V
Voltage - Input (Min) [Min]	2.97 V	2.97 - 21.6 V
Voltage - Isolation	6000 V	6000 V
Voltage - Output 1	5 V	5 - 12 V
Voltage - Output 1	-	12 - 15 V
Voltage - Output 1	-	-15 - -12 V
Voltage - Output 2	-	-15 - -9 V

AM1DM Series

DC DC CONVERTER 12V 1W

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Voltage - Isolation	Applications	Approval Agency	Package / Case	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]
aimtec AM1DM-0512SH60-NZ	12 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	1	4.5 V	76 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 4 Leads	5.5 V	84 mA
aimtec AM1DM-0505SH60-NZ	5 V							1	4.5 V	78 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 4 Leads	5.5 V	200 mA	7-SIP
aimtec AM1DM-0305SH60-NZ	5 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	1	2.97 V	71 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 4 Leads	3.63 V	200 mA
aimtec AM1DM-0515DH60-NZ		0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	2	4.5 V	76 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 5 Leads	5.5 V			15 V	-15 V	-15 V	34 mA
aimtec AM1DM-1215DH60-NZ		0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	2	10.8 V	75 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 5 Leads	13.2 V			15 V	-15 V	-15 V	34 mA
aimtec AM1DM-2409DH60-NZ		0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	2	21.6 V	79 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 5 Leads	26.4 V					-9 V
aimtec AM1DM-0512DH60-NZ								2	4.5 V	74 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus		5.5 V	42 mA		12 V	-12 V	-12 V		42 mA
aimtec AM1DM-1209DH60-NZ		0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	2	10.8 V	80 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 5 Leads	13.2 V					-9 V
aimtec AM1DM-2412DH60-NZ		0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	2	21.6 V	76 %	85 °C	-40 °C	Through Hole	Isolated Module	6000 V	Medical	CE, cURus	7-SIP Module, 5 Leads	26.4 V	42 mA		12 V	-12 V	-12 V		42 mA
