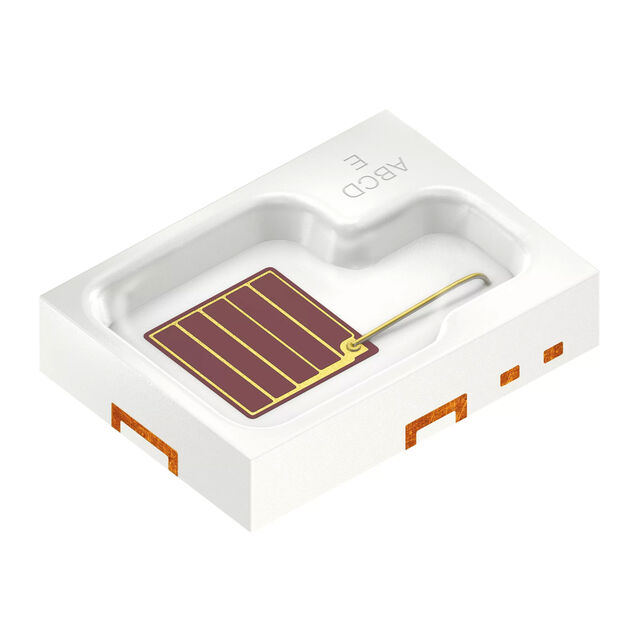

SFH 4770S A01

Active

ams-OSRAM USA INC.

SYNIOS P2720

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SYNIOS P2720

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 3.35V 1.5A 1200mW/sr @ 1.5A 120° 2-SMD, No Lead

Technical documentation and resources

Specification	SFH 4770S A01	SFH4770 Series

Current - DC Forward (If) (Max) [Max]	1.5 A	1.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If	-	370 mW/sr
Radiant Intensity (Ie) Min @ If [Min]	1200 mW/sr	1200 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.35 V	3.2 - 3.35 V
Wavelength	860 nm	860 nm

Part	Current - DC Forward (If) (Max) [Max]	Mounting Type	Radiant Intensity (Ie) Min @ If	Voltage - Forward (Vf) (Typ)	Type	Viewing Angle	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Wavelength	Package / Case	Radiant Intensity (Ie) Min @ If [Min]
ams-OSRAM USA INC. SFH 4770S	1.5 A	Surface Mount	370 mW/sr	3.2 V	Infrared (IR)	120 °	-40 °C	100 °C	Top View	860 nm	2-SMD, No Lead
ams-OSRAM USA INC. SFH 4770S A01	1.5 A	Surface Mount		3.35 V	Infrared (IR)	120 °	-40 °C	100 °C	Top View	860 nm	2-SMD, No Lead	1200 mW/sr
