7-1437531-8

Obsolete

TE Connectivity Raychem Cable Protection

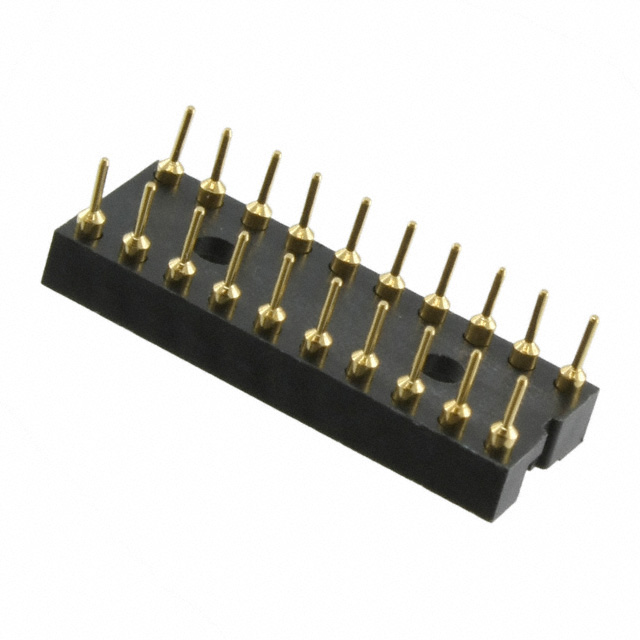

CONN IC DIP SOCKET 20POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 20POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	7-1437531-8

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Termination	Type	Type	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 7-1437531-8	3.18 mm	0.125 in	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	Solder	0.3 "	7.62 mm	DIP	Through Hole	-55 °C	125 °C	Closed Frame	Copper Alloy	20	Gold	2.54 mm	0.1 in	Gold
TE Connectivity Raychem Cable Protection 4-1437531-5	3.18 mm	0.125 in	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	Wire Wrap	0.3 "	7.62 mm	DIP	Through Hole	-55 °C	125 °C	Closed Frame	Copper Alloy	16	Gold	2.54 mm	0.1 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
