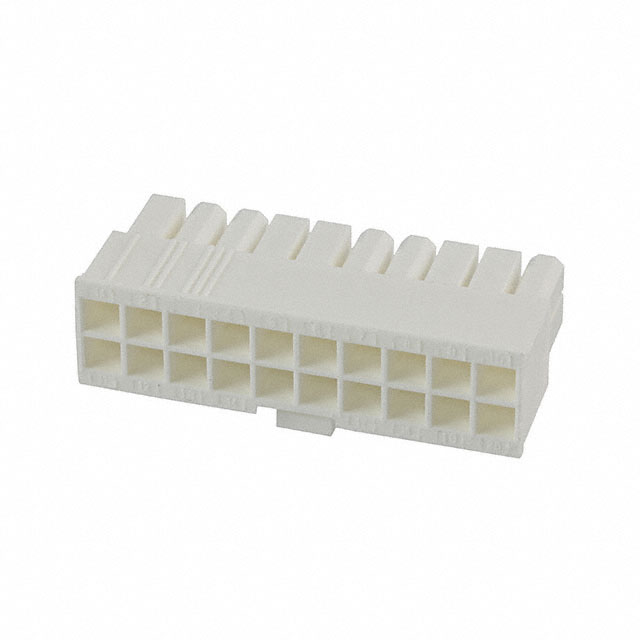

10127815-20LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 20POS 4.20MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-12-1181 Other Related Documents +1

10127815-20LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 20POS 4.20MM

Deep-Dive with AI

DocumentsDatasheet gs-12-1181 Other Related Documents +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10127815-20LF

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	4.2 mm
Pitch [x]	0.165 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

10127815 Series

Part	Connector Type	Note	Contact Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Color	Insulation Material	Fastening Type	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Contact Termination	Mounting Type
Amphenol ICC (FCI) 10127815-20LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	20	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-10LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	10	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-04LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	4	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-14LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	14	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-02LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2			2	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-08LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	8	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-24LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	24	Crimp	Free Hanging (In-Line)
Amphenol ICC (FCI) 10127815-06LF	Receptacle	Contacts Not Included	Female Socket	Glow Wire Compliant	-40 °C	105 ░C	4.2 mm	0.165 in	Natural	Polyamide (PA66) Nylon 6/6	Latch Lock	2	4.2 mm	0.165 in	6	Crimp	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.42
		10	$ 0.32
		25	$ 0.29
		50	$ 0.27
		100	$ 0.25
		250	$ 0.22
		500	$ 0.21
		1000	$ 0.19
