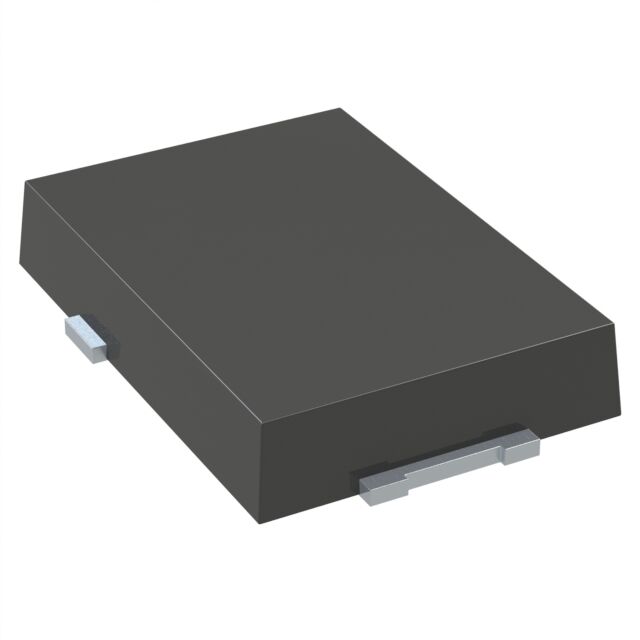

TUAS3MH

Active

Taiwan Semiconductor Corporation

DIODE STANDARD 1000V 3A TO277A

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE STANDARD 1000V 3A TO277A

Technical Specifications

Parameters and characteristics for this part

Specification	TUAS3MH

Capacitance @ Vr, F	24 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	3-PowerDFN, TO-277
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-277A (SMPC4.6U)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Current - Average Rectified (Io)	Grade	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Capacitance @ Vr, F	Qualification	Mounting Type	Technology	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr
Taiwan Semiconductor Corporation TUAS3MH	3 A	Automotive	Standard Recovery >500ns	200 mA	1000 V	1.1 V	3-PowerDFN TO-277	24 pF	AEC-Q101	Surface Mount	Standard	TO-277A (SMPC4.6U)	150 °C	-55 °C	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 3A Surface Mount TO-277A (SMPC4.6U)
