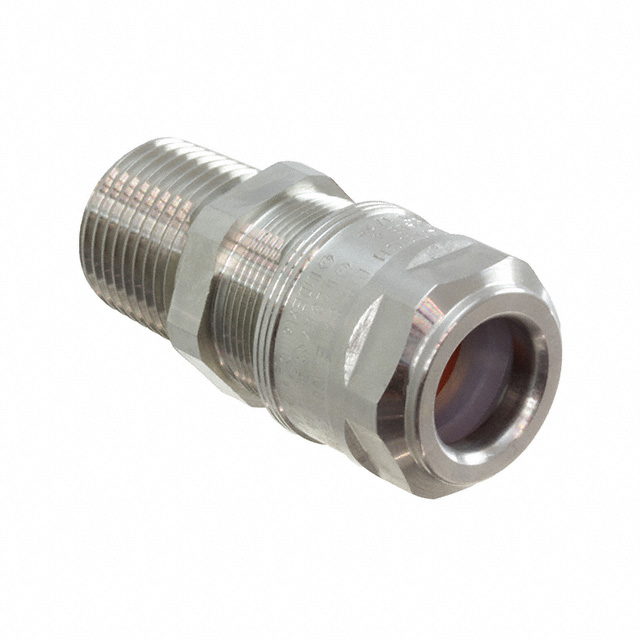

LEX3012VA/316LHTS

Active

Pflitsch

CABLE GLND 7.87-13.97MM 1/2" NPT

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLND 7.87-13.97MM 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	LEX3012VA/316LHTS

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP66/IP68
Material	Stainless Steel
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.55 in
Outside Cable Diameter (Max) [Max] [diameter]	13.97 mm
Outside Cable Diameter (Min) [Min]	0.31 in
Outside Cable Diameter (Min) [Min]	7.87 mm
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.787 in
Thread Length	20 mm
Thread Size	1/2" NPT
Type	Cable Gland

Part	Type	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Material	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Pflitsch LEX3012VA/316LHTS	Cable Gland	IP66/IP68	0.55 in	13.97 mm	0.31 in	7.87 mm	Silver	130 °C	-60 °C	Sealing Ring	0.63 in	16 mm	0.787 in	20 mm	Stainless Steel	1/2" NPT
Pflitsch LEX3012MSHTS	Cable Gland	IP66/IP68					Silver	130 °C	-60 °C				0.787 in	20 mm	Brass Nickel Plated	1/2" NPT	14 mm	0.551 "	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel 1/2" NPT Silver
