EE1126-000

Obsolete

TE Connectivity Raychem Cable Protection

CPGI-RNF-100-ASRT-4N-BLK

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CPGI-RNF-100-ASRT-4N-BLK

Technical Specifications

Parameters and characteristics for this part

Specification	EE1126-000

Color	Black
Features	Abrasion Resistant, Flame Retardant, Solvent Resistant
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Color	Shrinkage Ratio	Material	Features	Type	Length	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
TE Connectivity Raychem Cable Protection EE1117-000
TE Connectivity Raychem Cable Protection EE1122-000	White	2 to 1	Polyolefin (PO)	Abrasion Resistant Flame Retardant Solvent Resistant	Tubing Flexible	3 "	76.2 mm	0.25 ft	12.7 mm	0.5 in	0.25 in	6.35 mm	135 °C	-55 °C	0.025 "	0.64 mm
TE Connectivity Raychem Cable Protection EE1126-000	Black	2 to 1	Polyolefin (PO)	Abrasion Resistant Flame Retardant Solvent Resistant	Tubing Flexible								135 °C	-55 °C
TE Connectivity Raychem Cable Protection EE1123-000	Black	2 to 1	Polyolefin (PO)	Abrasion Resistant Flame Retardant Solvent Resistant	Tubing Flexible	3 "	76.2 mm	0.25 ft	12.7 mm	0.5 in	0.25 in	6.35 mm	135 °C	-55 °C	0.025 "	0.64 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

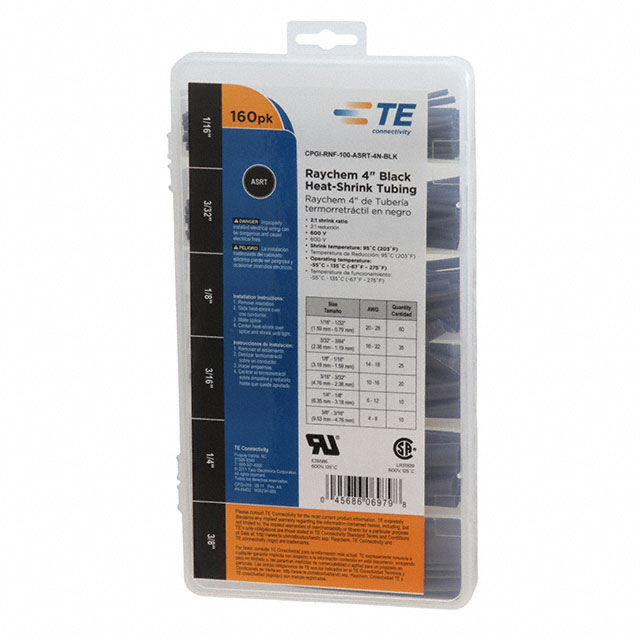

Heat Shrink Tubing, Flexible 2 to 1 Black

Technical documentation and resources
