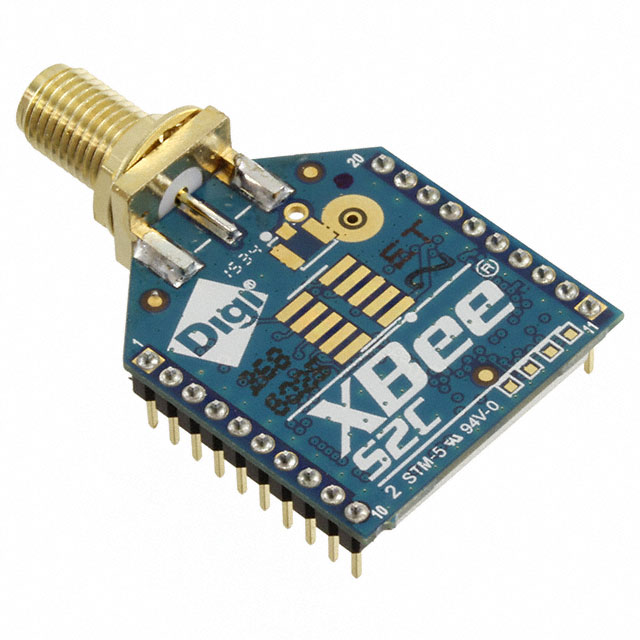

XB24CZ7SITB003

Digi

RF TXRX MOD 802.15.4RPSMA TH

Deep-Dive with AI

DocumentsMap Your Digi XBee IoT Network with Digi XCTU Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XB24CZ7SITB003

Antenna Type	Antenna Not Included, RP-SMA
Current - Receiving [Max]	45 mA
Current - Receiving [Min]	28 mA
Current - Transmitting [Max]	59 mA
Current - Transmitting [Min]	33 mA
Data Rate	1 Mbps
Frequency	2.4 GHz
Memory Size	2 kB, 32 kB
Modulation	DSSS
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	8 dBm
Protocol	Zigbee®
RF Family/Standard	802.15.4
Sensitivity	-102 dBm
Serial Interfaces	UART, SPI
Utilized IC / Part	EM357
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

XB24CZ7 Series

Part	Package / Case	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Antenna Type	Serial Interfaces	Power - Output	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	RF Family/Standard	Current - Receiving [Min]	Current - Receiving [Max]	Data Rate	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Frequency	Sensitivity	Memory Size
Digi XB24CZ7SIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included RP-SMA	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7WIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Integrated Wire Antenna	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7UIS-004	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-100 dBm
Digi XB24CZ7RIS-004	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-100 dBm
Digi XB24CZ7SITB003	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included RP-SMA	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UIT-004	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm
Digi XB24CZ7PITB003	Module	EM357	85 °C	-40 °C	Through Hole	Integrated Trace	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UISB003	Module	EM357	85 °C	-40 °C	Surface Mount	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB
Digi XB24CZ7UITB003	Module	EM357	85 °C	-40 °C	Through Hole	Antenna Not Included U.FL	SPI UART	8 dBm	Zigbee®	33 mA	59 mA	802.15.4	28 mA	45 mA	1 Mbps	2.1 V	3.6 V	DSSS	2.4 GHz	-102 dBm	2 kB 32 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 33.77
		100	$ 31.99

Description

General part information

XB24CZ7 Series

802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Through Hole
