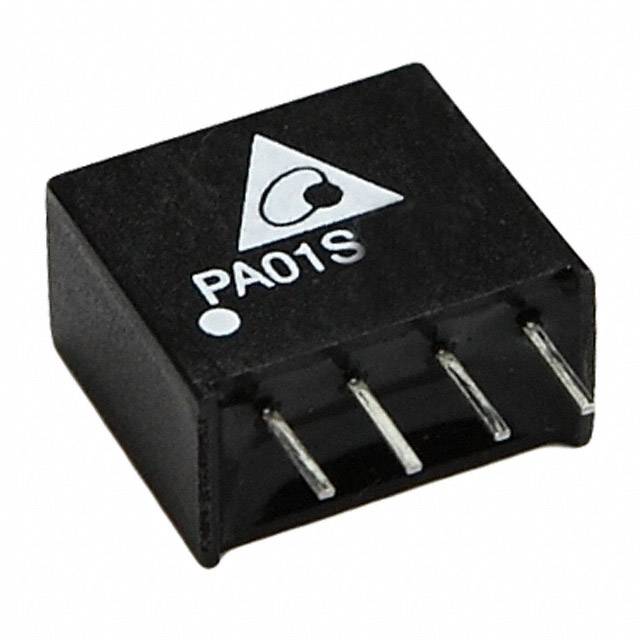

PA01S2415A

Active

Delta Electronics

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

Active

Delta Electronics

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Type	Number of Outputs	Applications	Mounting Type	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Features
Delta Electronics PA01S2415A	26.4 V	67 mA	15 V	1000 V	21.6 V	4-SIP Module	Isolated Module	1	ITE (Commercial)	Through Hole	79 %	85 °C	-40 °C	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	SCP
Delta Electronics PA01S1205A	13.2 V	200 mA	5 V	1000 V	10.8 V	4-SIP Module	Isolated Module	1	ITE (Commercial)	Through Hole	71 %	85 °C	-40 °C	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	SCP
Delta Electronics PA01S2409A	26.4 V	110 mA	9 V	1000 V	21.6 V	4-SIP Module	Isolated Module	1	ITE (Commercial)	Through Hole	76 %	85 °C	-40 °C	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	SCP
Delta Electronics PA01S0305A	3.63 V	200 mA	5 V	1000 V	2.97 V	4-SIP Module	Isolated Module	1	ITE (Commercial)	Through Hole	77 %	85 °C	-40 °C	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 5.07

General part information

Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
