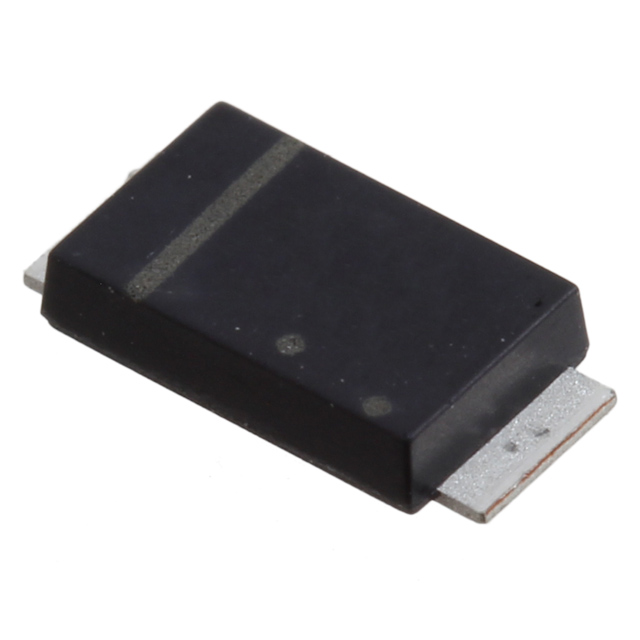

DZ2420000L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER 20V 2W TMINIP2
Deep-Dive with AI
Search across all available documentation for this part.
DZ2420000L
UnknownPanasonic Industrial Automation Sales
DIODE ZENER 20V 2W TMINIP2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DZ2420000L |
|---|---|
| Current - Reverse Leakage @ Vr | 10 µA |
| Impedance (Max) (Zzt) [Max] | 30 Ohms |
| Mounting Type | Surface Mount |
| Package / Case | SOD-128 |
| Power - Max [Max] | 2 W |
| Supplier Device Package | TMiniP2-F2-B |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.18 | |
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 30000 | $ 0.16 | |||
Description
General part information
DZ24200 Series
Zener Diode 20 V 2 W ±5% Surface Mount TMiniP2-F2-B
Documents
Technical documentation and resources
No documents available
