214-44-640-01-670800

Active

Mill-Max Manufacturing Corp.

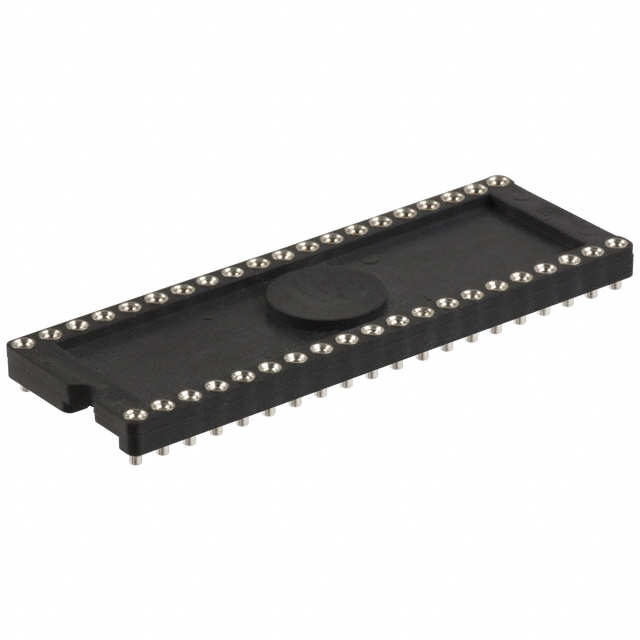

CONN IC DIP SOCKET 40POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

214-44-640-01-670800

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 40POS TIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	214-44-640-01-670800

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	1.42 mm
Termination Post Length	0.056 in
Type	DIP
Type	0.6 in
Type	15.24 mm

214-44 Series

Part	Number of Positions or Pins (Grid)	Contact Material - Mating	Type	Type	Type	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Material - Post	Features	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 214-44-320-01-670800	20	Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 214-44-316-01-670800	16	Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 214-44-624-01-670800	24	Beryllium Copper	0.6 in	15.24 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 214-44-640-01-670800	40	Beryllium Copper	0.6 in	15.24 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm	20	2
Mill-Max Manufacturing Corp. 214-44-314-01-670800	14	Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 214-44-306-01-670800		Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm	3	2	6
Mill-Max Manufacturing Corp. 214-44-318-01-670800	18	Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 214-44-308-01-670800	8	Beryllium Copper	0.3 "	7.62 mm	DIP	3 A	2.54 mm	0.1 in	Brass Alloy	Closed Frame	Tin	-55 °C	125 °C	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Solder	1.42 mm	0.056 in	2.54 çm	100 çin	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.42
		10	$ 4.01
		30	$ 3.80
		50	$ 3.71
		100	$ 3.54
		250	$ 3.09
		500	$ 3.01
		1000	$ 2.56
		2500	$ 2.39

Description

General part information

214-44 Series

40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin Surface Mount
