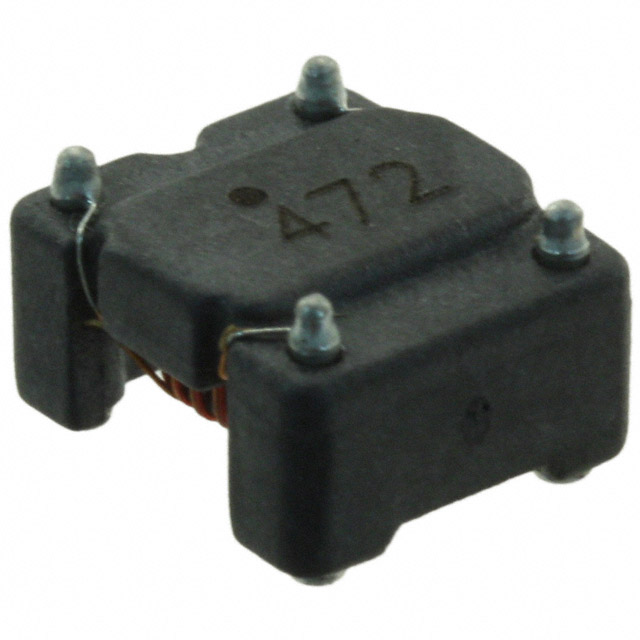

SRF1006-502Y
ActiveBourns Inc.
CMC10X8.7X6.5MM,500040%0.25A,NON-SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRF1006-502Y
ActiveBourns Inc.
CMC10X8.7X6.5MM,500040%0.25A,NON-SHDSMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRF1006-502Y |
|---|---|
| Current Rating (Max) [Max] | 250 mA |
| DC Resistance (DCR) (Max) | 620 mOhm |
| Height (Max) | 6.5 mm |
| Height (Max) | 0.256 in |
| Impedance @ Frequency | 5 kOhms |
| Inductance @ Frequency | 5 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 0.343 in |
| Size / Dimension [y] | 8.7 mm |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRF1006 Series
5 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 5 kOhms @ 500 kHz 250mA DCR 620mOhm
