PC28F640J3D75E
ActiveMicron Technology Inc.

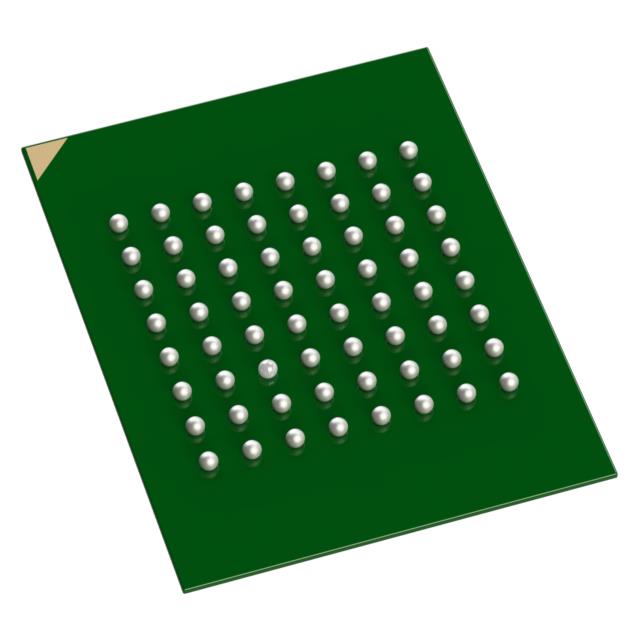

IC FLASH 64MBIT PAR 64EASYBGA
Deep-Dive with AI
Search across all available documentation for this part.
PC28F640J3D75E
ActiveMicron Technology Inc.
IC FLASH 64MBIT PAR 64EASYBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PC28F640J3D75E | PC28F640 Series |
|---|---|---|
| Access Time | 75 ns | 60 - 85 ns |
| Clock Frequency | - | 52 MHz |
| Memory Format | FLASH | FLASH |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 4 M, 8 M | 4 - 8 M |
| Memory Size | 64 Gbit | 64 Gbit |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 64-TBGA | 64-TBGA |
| Supplier Device Package | 64-EasyBGA (10x13) | 64-EasyBGA (10x13), 64-EasyBGA (8x10) |
| Technology | FLASH - NOR | FLASH - NOR |
| Voltage - Supply [Max] | 3.6 V | 2 - 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 1.7 - 2.7 V |
| Write Cycle Time - Word, Page | 75 ns | 60 - 85 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
PC28F640 Series
IC FLASH 64MBIT PAR 64EASYBGA
| Part | Memory Interface | Access Time | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Format | Package / Case | Clock Frequency | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Memory Size | Memory Type | Mounting Type | Write Cycle Time - Word, Page | Memory Organization |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micron Technology Inc. PC28F640P33B85A | Parallel | 85 ns | 3.6 V | 2.3 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 85 ns | 4 M |
Micron Technology Inc. PC28F640P30B85A | Parallel | 85 ns | 2 V | 1.7 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 85 ns | 4 M |
Micron Technology Inc. PC28F640J3D75E | Parallel | 75 ns | 3.6 V | 2.7 V | FLASH | 64-TBGA | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 75 ns | 4 M, 8 M | |
Micron Technology Inc. PC28F640P30BF65B TR | Parallel | 75 ns | 2 V | 1.7 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 75 ns | 4 M |
Micron Technology Inc. PC28F640P30B85D TR | Parallel | 85 ns | 2 V | 1.7 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 85 ns | 4 M |
Micron Technology Inc. PC28F640P30TF65B TR | Parallel | 65 ns | 2 V | 1.7 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (8x10) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 65 ns | 4 M |
Micron Technology Inc. PC28F640P33BF60A | Parallel | 60 ns | 3.6 V | 2.3 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 60 ns | 4 M |
Micron Technology Inc. PC28F640P30B85E | Parallel | 85 ns | 2 V | 1.7 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 85 ns | 4 M |
Micron Technology Inc. PC28F640P33B85B TR | Parallel | 85 ns | 3.6 V | 2.3 V | FLASH | 64-TBGA | 52 MHz | 64-EasyBGA (10x13) | 85 °C | -40 °C | FLASH - NOR | 64 Gbit | Non-Volatile | Surface Mount | 85 ns | 4 M |
Description
General part information
PC28F640 Series
FLASH - NOR Memory IC 64Mbit Parallel 75 ns 64-EasyBGA (10x13)
